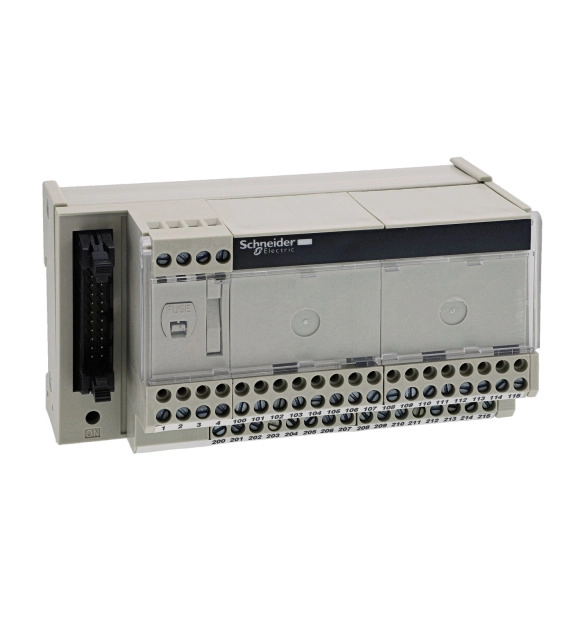

СКУ: ABE7H16R20
Кабелна основа 16вх.изх. 1 жил.
-
Brand
Schneider Electric
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Height
70
-
With LED indication
FALSE
-
Degree of protection (IP)
EV006409
-
With potential separation
FALSE
-
Operating temperature
-5
-
Operating voltage
24
-
Material of contact surface
EV000154
-
Rated voltage
24
-
Depth
67
-
Width
125
-
Colour housing
EV000270
-
Thread sleeves sensor/actuator slots
EV000154
-
Material insulation body
EV000154
-
Type of branches for sensor-/actuator cables
EV000154
-
Fix cable version suitable for cable guide chain
FALSE
-
Number of sensor-/actuator-slots
1
-
Material contact body
EV009430
-
Connectable conductor cross section
0.09
-
Diameter contact female
2.5
-
Material housing
EV001011
-
Pollution degree
EV000600
-
Cable length configurable
TRUE
-
Cable outer diameter for cable gland
0.09
-
Connection for NPN-sensors
TRUE
-
Max. current carrying capacity per socket
1.8
-
Max. total current
1.8
-
Max. current carrying capacity per I/O signal
0.5
-
Number of poles sensor/actuator slots
16
-
Number of channels per connector slot
16
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as digital I/O and all the commons, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a universal sub-base with IP20 degree of protection. It weighs 0.300kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon Quantum and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
