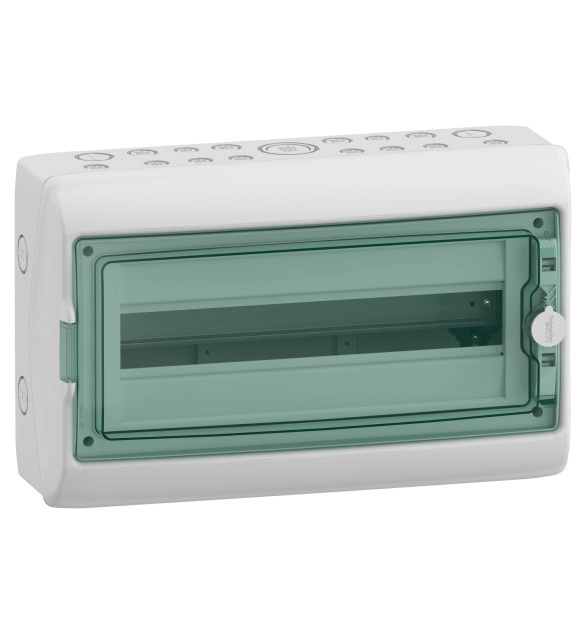

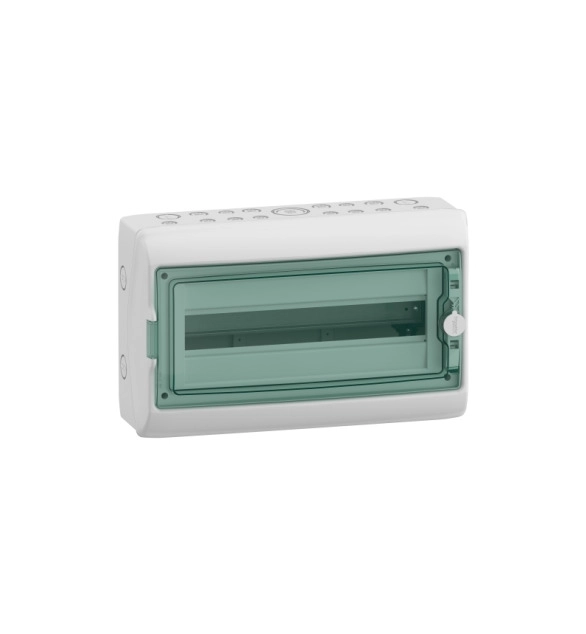

SHNEIDER ELECTRIC Enclosure KAEDRA, for modular device, 1 x 18 modules, 2 terminal blocks

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 3 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 32 outgoers (16x10mm² + 16x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 46W. The In rated current is up to 125A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 340mm x (H) 610mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
