СКУ: 31186

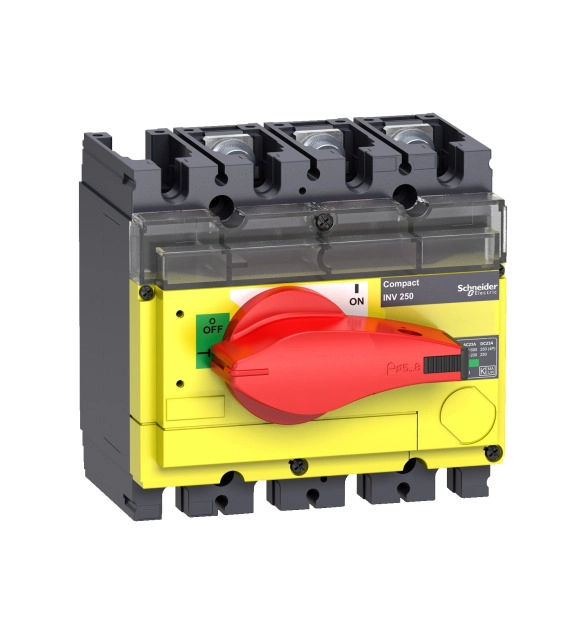

Тов. прекъсвач INV250 3P 250 A R/Y - VISIBLE BREAK SWIT
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Version as reversing switch
FALSE
-
Suitable for front mounting centre
TRUE
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Voltage release optional
FALSE
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Colour control element
EV000206
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Number of auxiliary contacts as change-over contact
4
-
Rated short-time withstand current lcw
50
-
Rated permanent current Iu
1600
-
Rated operation power at AC-23, 400 V
710
-
Rated permanent current at AC-21, 400 V
1600
-
Rated permanent current at AC-23, 400 V
1250
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
This Compact INV250 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250A at 415VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV250 is a class II insulation level front-face device as per IEC 60664 standard.
