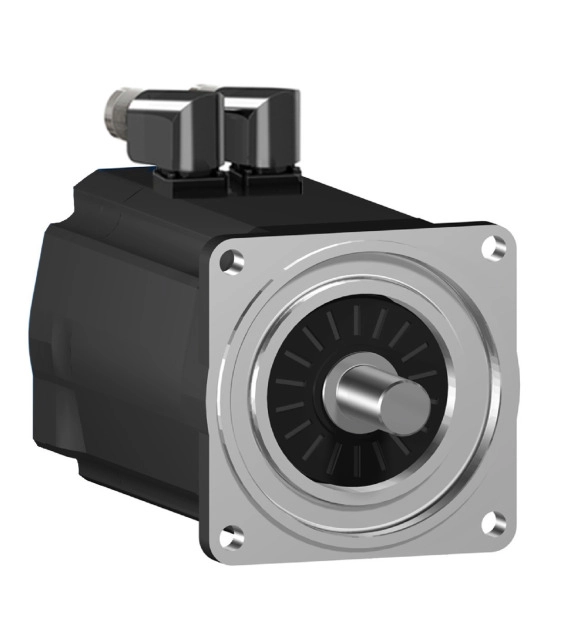

Серво мотор SH3 140 11,1Nm, с ключ, единичен, без спирачка, 90° свързване, IP54/IP65,4k RPM

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 5-pole servo motor features maximum mechanical speed of 4000RPM and parallel key shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 217.5mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 11.9kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
