серво мотор BCH, Lexium 28, 60mm, 400W, 0.27kg.cm?, без маслено уплътнение, с ключ, кабелна връзка

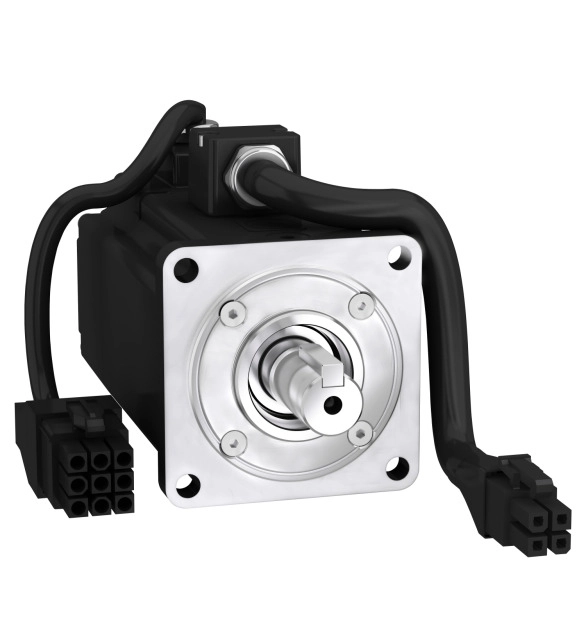

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This brushless servo motor features maximum mechanical speed of 5000RPM, a key shaft end, without holding brake. It is equipped with a 20 bits single turn absolute encoder. It is equipped with flying leads. It is a servo motor with a rated supply voltage of 110V to 220V, a continuous stall current of 2.19A and a continuous power of 400W. Shaft end and casing are an IP65 rated. The flange size is 30mm, it is fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 50mm. It weighs 1.45kg. BCH2 servo motors with Lexium servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O/AC 2010 standards, and conforms to EU CE, UKCA, CSA, and UL. This servo motor is compatible with LXM28 servo drive at 0.4kW, 220V, and with encoder cables and power cables. Permitted mounting positions are horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.
