СКУ: NSYCMUCR50

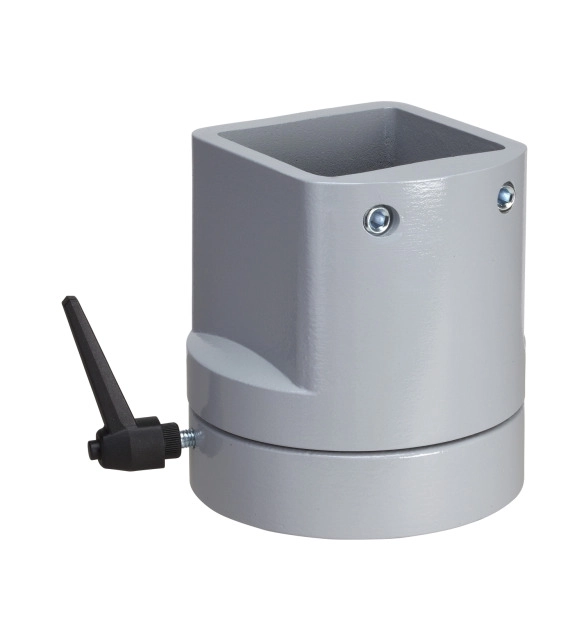

SCHNEIDER ELECTRIC Vertical rotating fixing, square 50mm, RAL 7040, for S3CM HMI encl.
-
Brand
Schneider Electric
-
Colour
EV000154
-
EMC-version
FALSE
-
Height
280
-
Ambient temperature during operating
-20
-
Material
EV000154
-
With filter mat
TRUE
-
Depth
8
-
Width
280
-
Filter class
EV003365
DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 760mm The height is 980mm Number of 18mm modules is 234 (1 module = 2 steps = 18 mm) Number of horizontal rows is 6 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 6 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 6 front panels with 35mm DIN rails
