СКУ: 28918

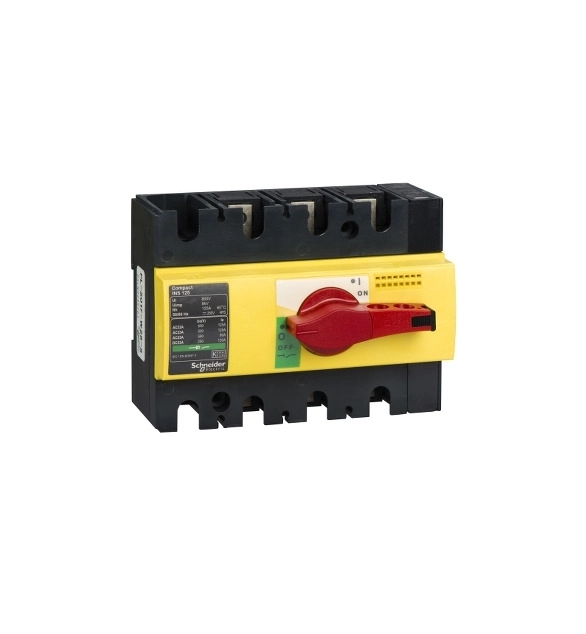

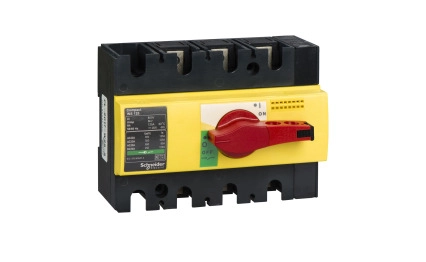

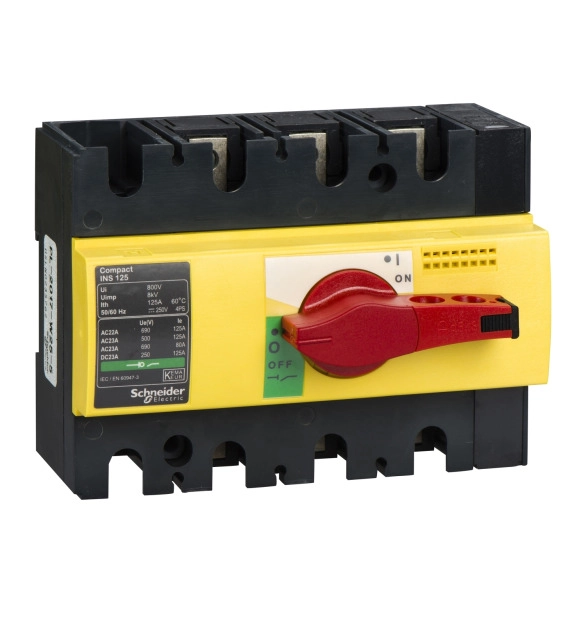

Товаров прекъсвач INS63 3P RED ROTARY HANDEL YELLOW
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as reversing switch
FALSE
-
Suitable for front mounting centre
TRUE
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Voltage release optional
FALSE
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Rated operation power at AC-23, 400 V
45
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Version as emergency stop installation
TRUE
-
Colour control element
EV000233
-
Number of auxiliary contacts as change-over contact
2
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Conditioned rated short-circuit current Iq
65
-
Rated short-time withstand current lcw
5.5
-
Rated permanent current Iu
100
-
Rated permanent current at AC-23, 400 V
100
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
This Compact INS80PV is a 4 poles non-automatic switch-disconnector with rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 600VDC. The rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS80PV is a class II insulation level front-face device as per IEC 60664 standard.
