СКУ: 7211732000

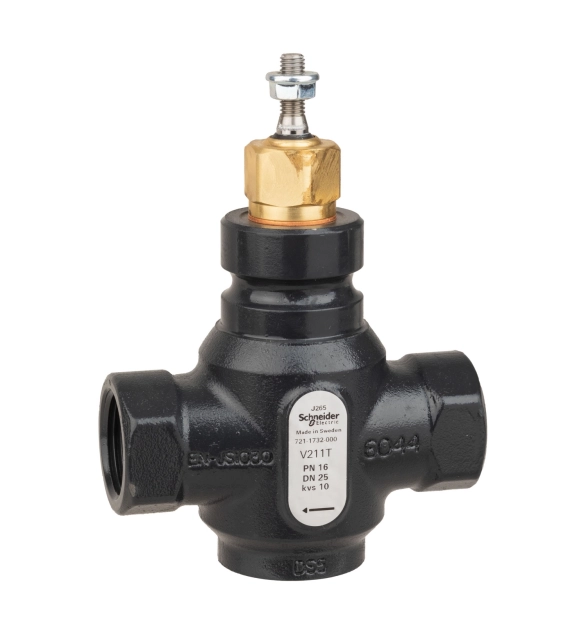

SCHNEIDER ELECTRIC Venta V211T Globe Valve, 2-Way, PN16, Rp 1 Internal thread, DN25, 10 Kvs, Nodular Iron Body and Seat, Brass Plug.
-
Brand
Schneider Electric
-
Suitable for cooling
TRUE
-
Surface protection
EV006034
-
Material housing
EV000154
-
Material quality
EV000154
-
Connection 1
EV000154
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Suitable for process water
TRUE
-
Characteristic curve
EV021552
-
Suitable for tap water
TRUE
-
Min. medium temperature (continuous)
-20
-
Stroke length
20
-
Automatic flow control
FALSE
-
Outer pipe diameter connection 1
15
-
Nominal diameter connection 1
EV020209
-
Leakage loss of Kvs value
0.005
-
Kvs value
4
The V211T is an internally threaded 2-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN32, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes. Valve Length (between flanges) is 13 mm, height is 164.5 mm, width 95 mm, Weight is 2.1 Kg. High Controllability and long life.
