СКУ: ATV630D30Y6

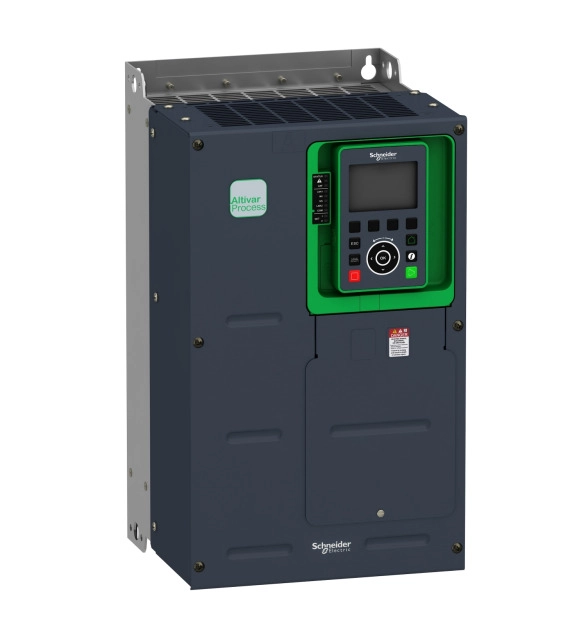

SCHNEIDER ELECTRIC Variable speed drive ATV630, 30kW, 40hp, 500-690V, IP00
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-485
2
-
Supporting protocol for CAN
TRUE
-
Number of analogue outputs
2
-
With control element
FALSE
-
Number of digital inputs
6
-
With PC connection
FALSE
-
Degree of protection (IP)
EV006404
-
Supporting protocol for BACnet
FALSE
-
Width
246
-
With optical interface
TRUE
-
Supporting protocol for PROFIBUS
TRUE
-
Supporting protocol for DeviceNet
TRUE
-
Type of converter
EV009484
-
Mains voltage
500
-
Max. output frequency
500
-
Mains frequency
EV008015
-
Number of phases input
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Application in domestic- and commercial area permitted
FALSE
-
Integrated breaking resistance
FALSE
-
4-quadrant operation possible
FALSE
-
Max. output voltage
690
-
Number of analogue inputs
3
-
Number of phases output
EV000600
-
Application in industrial area permitted
FALSE
-
Height
420
-
Depth
242
-
Max. output at quadratic load at rated output voltage
30
-
Max. output at linear load at rated output voltage
30
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
-
Number of digital outputs
-
Nominal output current I2N
34
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW/40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW/30HP for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
