СКУ: ATV212WU40N4

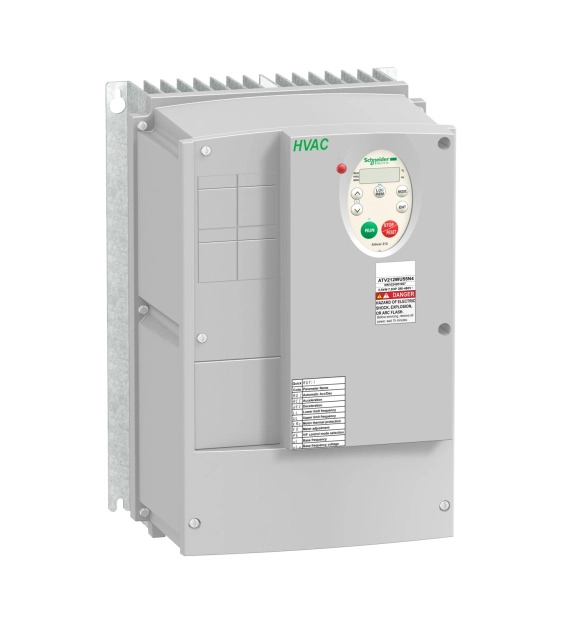

SCHNEIDER ELECTRIC Variable speed drive Altivar 212, 4kW, 5hp, 480V, 3PH, EMC class C2
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006420
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
With control element
TRUE
-
With optical interface
FALSE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces serial TTY
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces industrial Ethernet
-
Number of digital outputs
-
Number of analogue inputs
2
-
Number of analogue outputs
1
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-232
-
Depth
315
-
Supporting protocol for BACnet
FALSE
-
Width
290
-
Height
560
-
Type of converter
EV009484
-
Mains frequency
EV008015
-
Number of phases input
EV000069
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Integrated breaking resistance
FALSE
-
Application in industrial area permitted
TRUE
-
4-quadrant operation possible
FALSE
-
With PC connection
TRUE
-
Application in domestic- and commercial area permitted
TRUE
-
Mains voltage
380
-
Max. output voltage
480
-
Max. output at quadratic load at rated output voltage
11
-
Max. output at linear load at rated output voltage
11
-
Max. output frequency
200
-
Number of digital inputs
3
-
Supporting protocol for LON
TRUE
-
Nominal output current I2N
22.5
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This drive can feed three-phase synchronous and asynchronous motors, and is enclosed for higher IP protection. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 5.1kg and its dimensions are 250mm wide, 340mm high, 182mm deep. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with environmental protection directives such as RoHS, WEEE, etc.
