СКУ: LGYT1E24
Earth Screwless TB 24holes & Jumper
-
Brand
Schneider Electric
-
Number of poles
1
-
Transparent
FALSE
-
Mounting method
EV000154
-
Operating temperature
-25
-
Inflammability class of insulation material according to with UL94
EV004429
-
Closing plate required
FALSE
-
Material insulation body
EV000403
-
Halogen free
FALSE
-
Height
40
-
Depth
46
-
Colour
EV000235
-
Width
95
-
Rated voltage
440
-
Explosion-tested version 'Ex e'
FALSE
-
Rated current In
63
-
Type of electrical connection 2
EV000415
-
Connectable conductor cross section solid-core
0.5
-
Connectable conductor cross section multi-wired
0.5
-
Connectable conductor cross section fine-strand with cable end sleeve
0.5
-
Connectable conductor cross section fine-strand without cable end sleeve
0.5
-
Type of electrical connection 1
EV000414
-
Number of clamp positions per pole
24

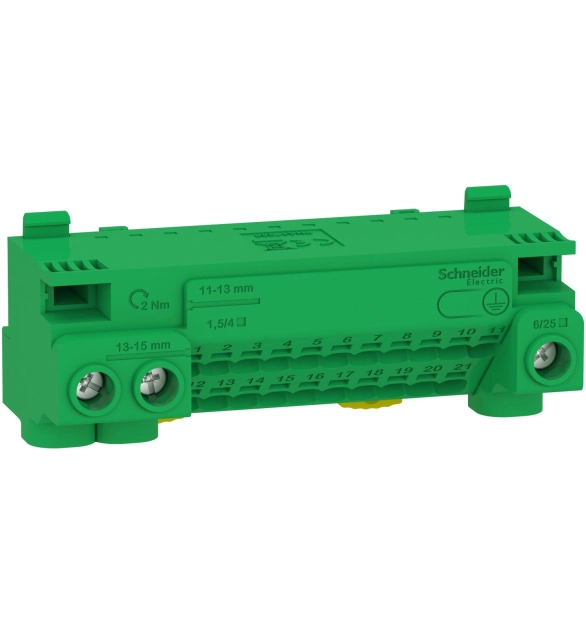

This Linergy product is an earth terminal block with jumper. It provides 24 outgoers (3 screw connections 25mm² and 21 screwless connections 4mm²). The In rated current is up to 63A. It is intended for installation in residential and small buildings. The dimensions are (W) 94.2mm x (H) 45.5mm x (D) 40.5mm. The storage temperature is from -25°C to 60°C.
