СКУ: RM22TR33

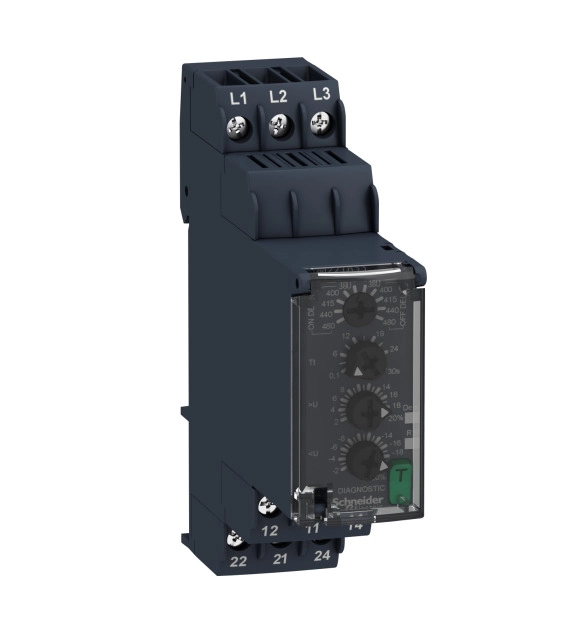

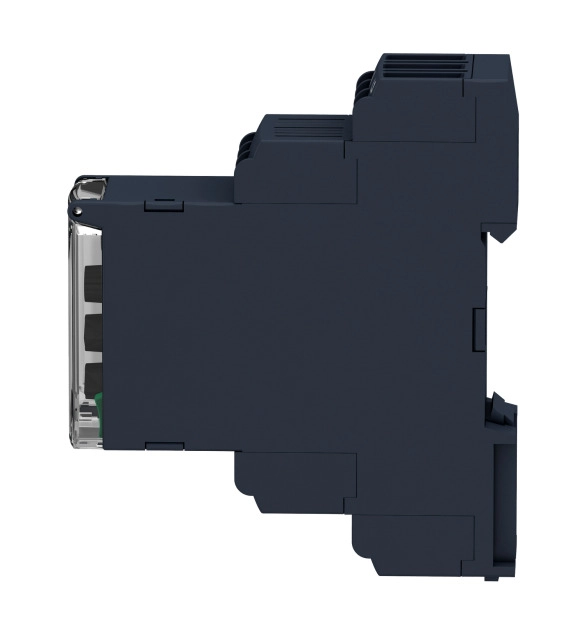

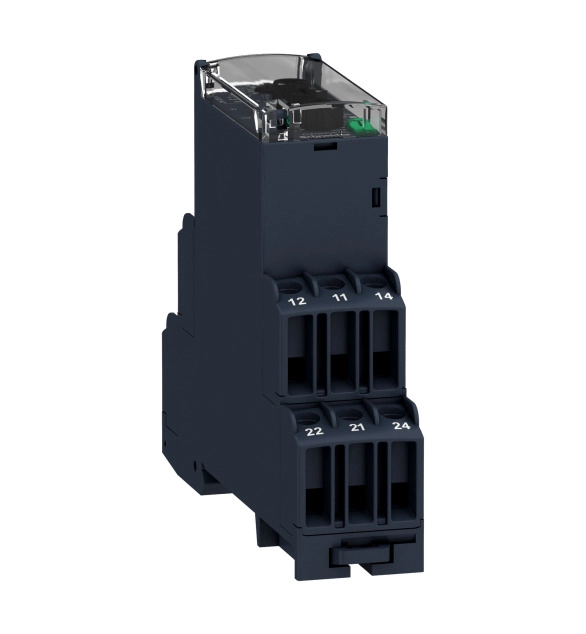

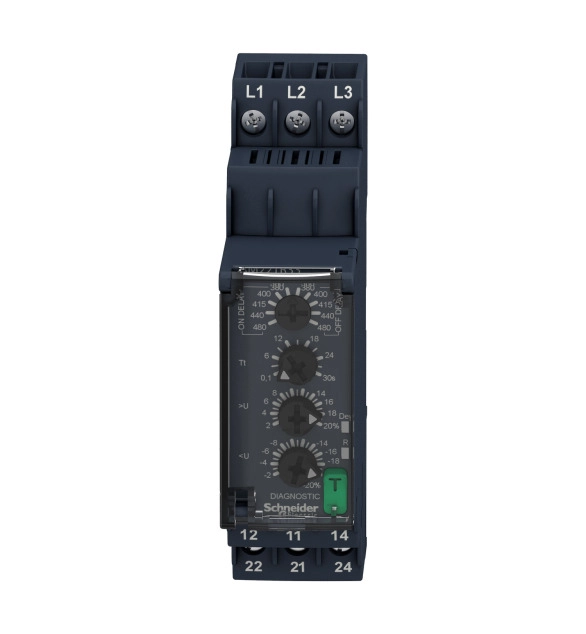

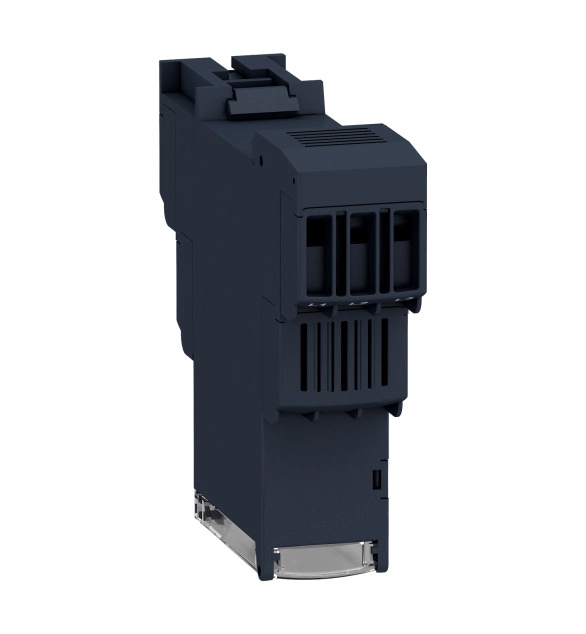

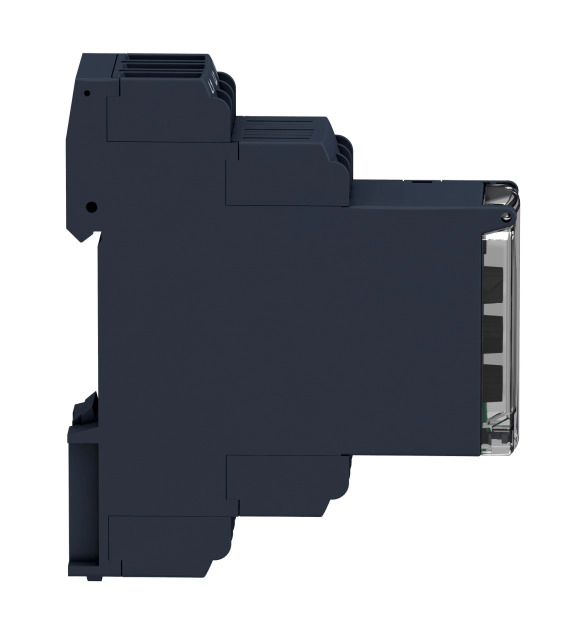

SCHNEIDER ELECTRIC Three-phase voltage control relay 380-480VAC, 2 C/O
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Voltage type for actuating
EV000460
-
With detachable clamps
FALSE
-
Height
90
-
Rated control supply voltage Us at AC 50HZ
380
-
Rated control supply voltage Us at AC 60HZ
380
-
Number of contacts as change-over contact
2
-
Depth
73
-
Phase sequence monitoring
TRUE
-
Phase imbalance monitoring
FALSE
-
Phase failure detection
TRUE
-
Function under voltage detection
TRUE
-
Function over voltage detection
TRUE
-
Min. adjustable off-delay time
0.1
-
Width
22.5
-
Max. permitted off-delay time
30
-
Min. adjustable delay-on energization time
0.1
-
Voltage measuring range
304
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Max. permitted delay-on energization time
30
This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
