СКУ: NSYPAP108G

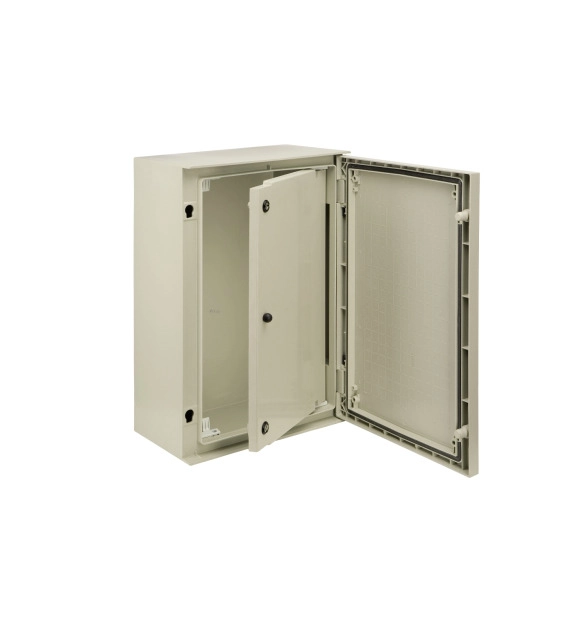

Вътрешна врата за PLM108
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Degree of protection (IP)
EV006421
-
Colour
EV000270
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Degree of protection (NEMA)
EV022254
-
Width
750
-
Connectable
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Height
750
-
Surface finishing
EV006034
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Material quality
EV000819
-
Depth
320
-
Max. permissible load of the mounting plate according to IEC 62208
530
-
Max. permissible load of the enclosure according to IEC 62208
922
-
Max. permissible load of the door(s) according to IEC 62208
157
This PLA is a versatile, floor-standing enclosure that is suitable for various applications The enclosure has nominal dimensions of 750mm in height, 750mm in width, and 420mm in depth It is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one plinth The door is designed to open up to 120° from either the right or left side, offering easy access to the equipment inside The door features a two-point lock with a handle that has a 5mm double-bar insert The rear panel and door are also removable for maintenance purposes The enclosure is certified by Veritas, DNV Marine, and UL/cUL listed and offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the construction of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
