SCHNEIDER ELECTRIC Reversing contactor, 3P(3NO), AC-3, <=440V, 32A, 48V AC coil | Spark & Co
  • 3D
|

СКУ: LC2D32E7

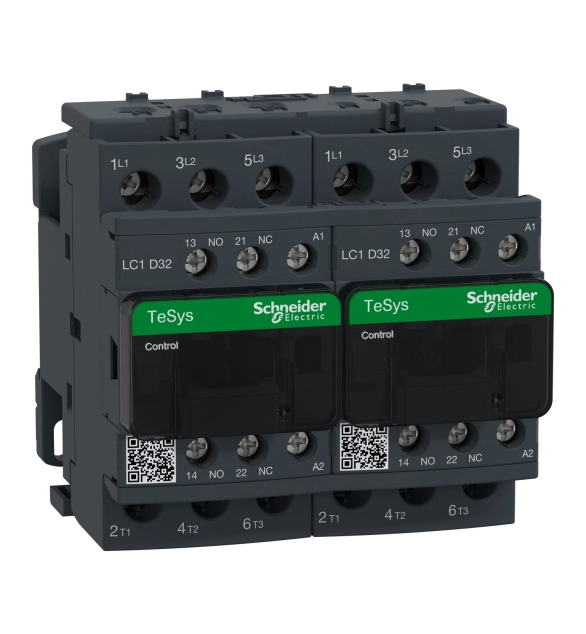

SCHNEIDER ELECTRIC Reversing contactor, 3P(3NO), AC-3, <=440V, 32A, 48V AC coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Rated operation power at AC-3, 400 V
    15
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Rated operation power NEMA
    14.9
  • Rated operation current Ie at AC-3, 400 V
    32
  • Function
    EV003958
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    50
  • Number of normally closed contacts as main contact

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides 48V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
