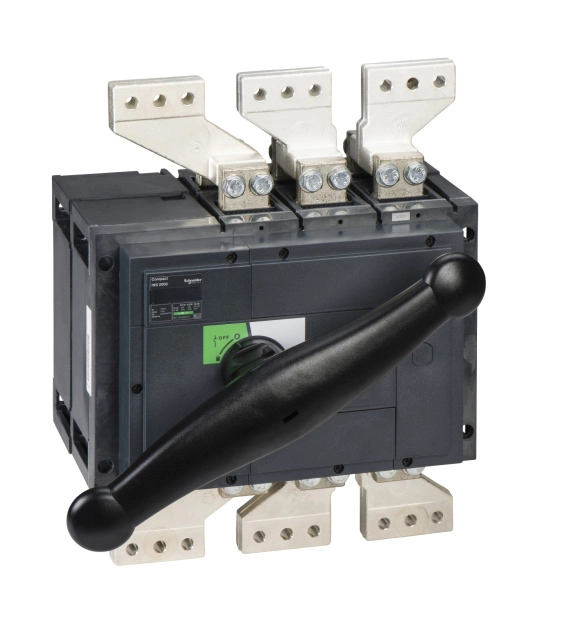

SCHNEIDER ELECTRIC Switch disconnector Compact INS2000, 2000A, 3P

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Version as reversing switch
    FALSE
  • Suitable for front mounting centre
    TRUE
  • Max. rated operation voltage Ue AC
    690
  • Number of poles
    3
  • Voltage release optional
    FALSE
  • Device construction
    EV009211
  • Version as safety switch
    FALSE
  • Rated operating voltage
    690
  • Suitable for front mounting 4-hole
    TRUE
  • Number of switches
    1
  • Motor drive integrated
    FALSE
  • Suitable for intermediate mounting
    FALSE
  • Motor drive optional
    FALSE
  • Version as main switch
    TRUE
  • Interlockable
    TRUE
  • Version as maintenance-/service switch
    TRUE
  • Colour control element
    EV000206
  • Suitable for distribution board installation
    TRUE
  • Type of control element
    EV004095
  • Degree of protection (IP), front side
    EV006415
  • Suitable for floor mounting
    TRUE
  • Number of auxiliary contacts as change-over contact
    4
  • Rated short-time withstand current lcw
    50
  • Rated operation power at AC-23, 400 V
    710
  • Rated permanent current at AC-23, 400 V
    1250
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated permanent current at AC-21, 400 V
    1250

This Compact INV1600 is a 3 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1600A at 415VAC in categories AC21B and AC22B, 1250A at 415VAC in category and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV1600 is a class II insulation level front-face device as per IEC 60664 standard.
