СКУ: KBC16DCB216
Изходяща кутия 16A
-
Brand
Schneider Electric
-
Number of poles
3
-
RAL-number
7035
-
Colour
EV000270
-
Degree of protection (IP)
EV006420
-
Protection
EV000494
-
Phase selection
FALSE
-
Type of socket outlets
EV000154
-
With adjustment
FALSE
-
Branch off type
EV000381
-
Rated voltage at AC 50 Hz
230
-
Number of conductors (without earthing)
2
-
Rated current at AC 50 Hz
16
-
Width
33
-
Height
53
-
Length
168
-
Number of other socket outlets
-
Number of CEE socket outlets
-
Number of NEMA socket outlets

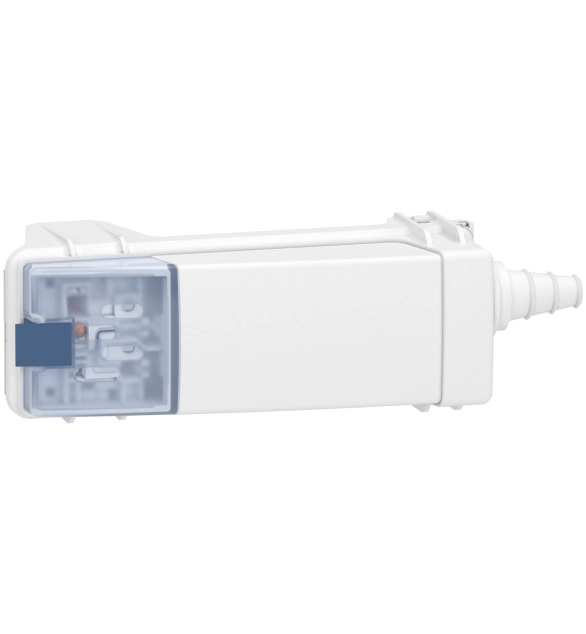

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Polarity is pre-selected L2+N2. The lock is in blue colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
