СКУ: SXWSATXXXSLX

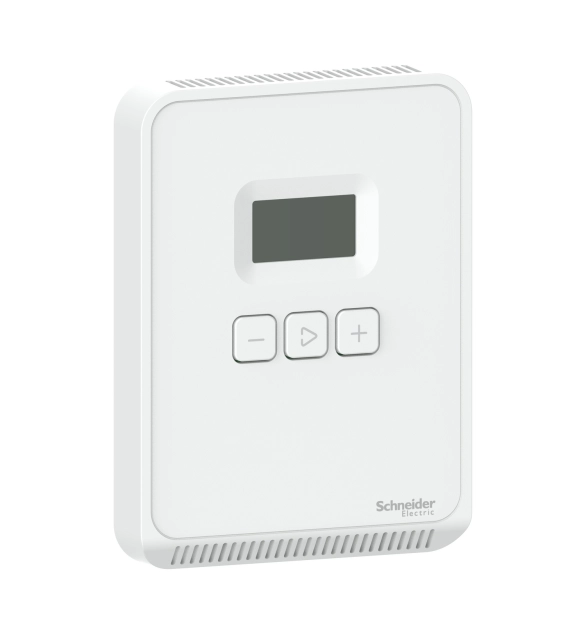

SCHNEIDER ELECTRIC SmartX temperature sensor , LCD display, setpoint override, cover included
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Model
EV000154
-
Colour
EV000202
-
Mounting method
EV000384
-
RAL-number (similar)
9003
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system KNX
FALSE
-
Bus system LON
FALSE
-
Weather station
FALSE
-
Number of digital inputs
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
With heating
FALSE
-
Acoustic signal
FALSE
-
With DCF77
FALSE
-
Analogue input
FALSE
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 30A power rated relay with relay type configuration and DC switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 1Vdc to 150Vdc. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
