SCHNEIDER ELECTRIC Single phase power supply, 100-240V input, 24V DC output, 252W, 10.5A | Spark & Co
  • 3D
|

СКУ: ABL2REM24100K

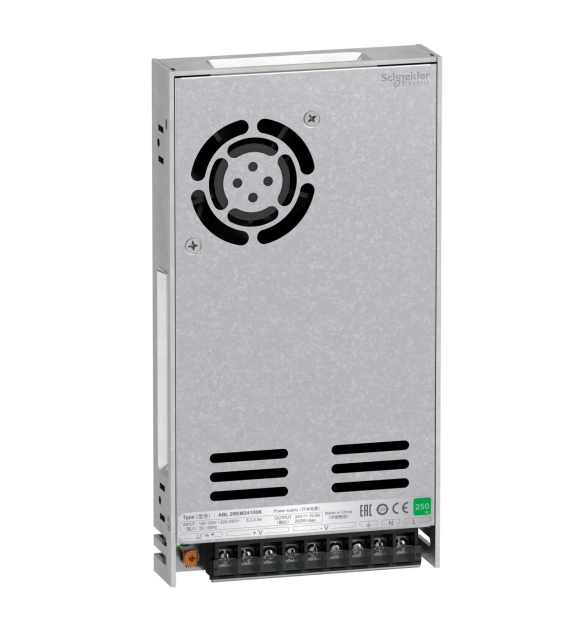

SCHNEIDER ELECTRIC Single phase power supply, 100-240V input, 24V DC output, 252W, 10.5A

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Degree of protection (IP)
    EV006405
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Suitable for safety functions
    FALSE
  • Rail mounting possible
    TRUE
  • Voltage type of supply voltage
    EV000460
  • Modular version
    FALSE
  • Depth
    30
  • Direct mounting possible
    TRUE
  • Secondary voltage adjustable
    FALSE
  • Width
    115
  • Short-circuit-proof
    FALSE
  • Nominal value output voltage 1
    24
  • Wall mounting possible
    FALSE
  • 1st secondary output voltage
    24
  • Rated supply voltage at AC 50 Hz
    100
  • Rated supply voltage at AC 60 Hz
    100
  • Output voltage stabilized
    FALSE
  • Stabilized
    FALSE
  • Height
    215
  • Power output
    250
  • Nominal value output current 1
    10.5
  • Max. output current 1
    10.5

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 250W, with a 100V to 240V AC output voltage, and 252W nominal power. Its output current is 10.5A. It offers better performance with cost effective. Its cooling is based on forced air, with an integrated DC fan. It has a manual voltage switching. Its overload hiccup protection is 110-150%. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.
