СКУ: KBA25ED4305W
прав елемент 25А 3Р, 3м с 3 изхода
-
Brand
Schneider Electric
-
RAL-number
9003
-
Colour
EV000202
-
Degree of protection (IP)
EV006420
-
Number of poles
5
-
Width
30
-
Flexible
FALSE
-
Number of conductors (without earthing)
4
-
Height
46
-
Rated voltage at AC 50 Hz
230
-
Model
EV002646
-
Rated current at AC 50 Hz
25
-
Length
3000
-
Number of tap-off units
5

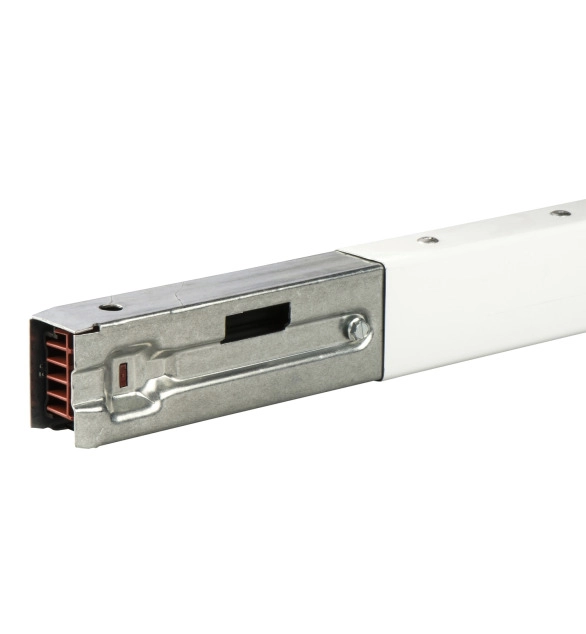

This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 5 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
