СКУ: A9A26948

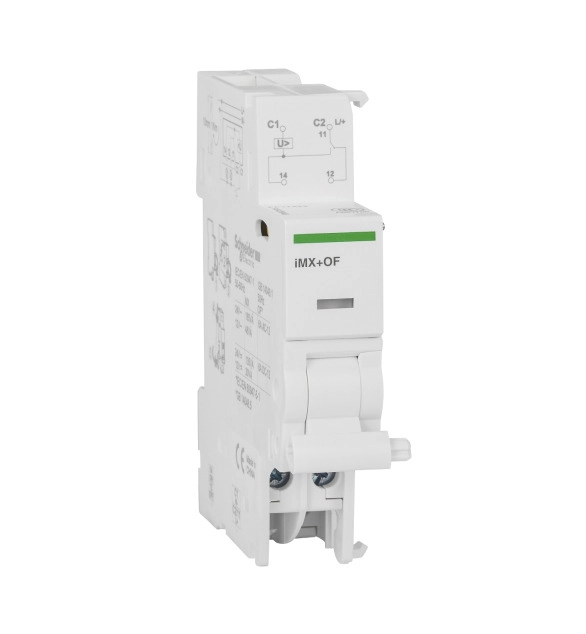

SCHNEIDER ELECTRIC Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 12-24VAC
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Rated switch current
6
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Number of contacts as change-over contact
1
-
Voltage type for actuating
EV000509
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Rated voltage
24
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV009614
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Number of fault-signal switches
This Acti9 iMX+OF electrical auxiliary is a shunt release device with open/close auxiliary contact. It is compatible with Acti9 ranges. This device includes an open/close contact OF to indicated the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The In rated operational current is from 10mA (mini) up to 6A (maxi) under 24VDC, 48VDC, 130VDC, 240VDC, 415VDC. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
