СКУ: BMH0701T07F2A

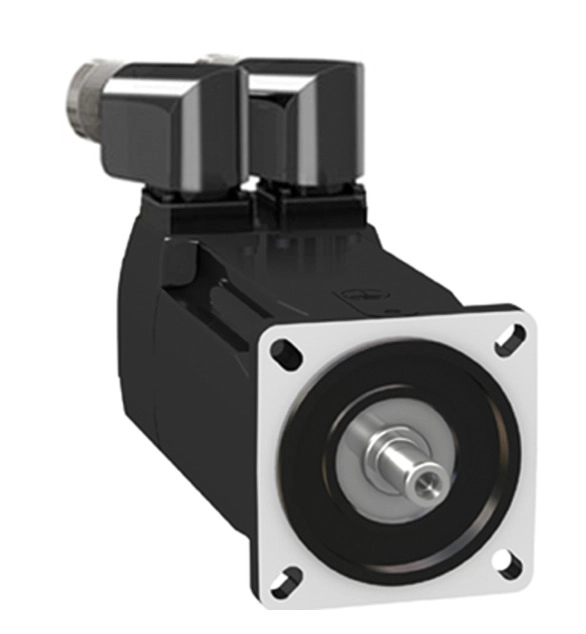

SCHNEIDER ELECTRIC Servo motor BMH, Lexium 32, 1.4Nm, 8000rpm, with brake, 16 multiturn encoder

  • Brand
    Schneider Electric
  • Number of phases
    3
  • Voltage type
    EV000509
  • Rated voltage
    240
  • Rated frequency
    50
  • Material housing
    EV000154
  • Degree of protection (IP)
    EV006419
  • Rated current
    6
  • Construction type
    EV000154
  • Bearing
    EV000154
  • Model
    EV006582
  • Motor efficiency class
    EV000154
  • Number of poles
    10
  • Overload capability
    FALSE
  • Cooling method
    EV000154
  • Shaft end type
    EV000154
  • Vacuum pressure impregnation (VPI)
    EV000154
  • With positive temperature coefficient resistor (PTC)
    FALSE
  • With resistance temperature detector (RTD)
    FALSE
  • Intrinsic safety (IS)
    EV000494
  • Suitable for frequency control
    FALSE
  • With anti-condensation
    FALSE
  • Duty cycle
    EV000154
  • Rated rotational speed at rated frequency
    8000
  • Insulation class according to IEC
    EV000154
  • Rated performance at rated frequency
    0.35
  • Nominal torque
    1.35
  • Operating temperature
  • Starting torque ratio
  • Breakdown torque ratio
  • Starting current ratio

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 8000RPM, an untapped shaft end, with a holding brake. It is equipped with a multi-turn encoder of the SinCos Hiperface type. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 240V, a continuous stall current of 2.85A, a continuous power of 1.05W, and a continuous stall torque of 1.4Nm. Its degree of protection is IP54 rated. The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 2.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU90M2, LXM32SU90M2, LXM32MU90M2, LXM32CU90M2, LXM32AD18M2, LXM32SD18M2, LXM32MD18M2, and LXM32CD18M2 servo drives. It is delivered as a single piece (PCE packaging). Its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price.
