SCHNEIDER ELECTRIC Serial line cartridge M221, HS code: 85369095, COO: CN, 0.1kg /CF-24-00282/ | Spark & Co
  • 3D
|

СКУ: TMC2SL1

SCHNEIDER ELECTRIC Serial line cartridge M221, HS code: 85369095, COO: CN, 0.1kg /CF-24-00282/

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Radio standard GPRS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Explosion safety category for dust
    EV000494
  • Radio standard UMTS
    FALSE
  • Explosion safety category for gas
    EV000494
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Appendant operation agent (Ex ia)
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Depth
    15
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Height
    41
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces RS-232
    1
  • With potential separation
    FALSE
  • Redundancy
    FALSE
  • Width
    35
  • Transmission rate
    1.2
  • Type of data transmission
    EV001143
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces other
  • Number of HW-interfaces Wireless
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces USB

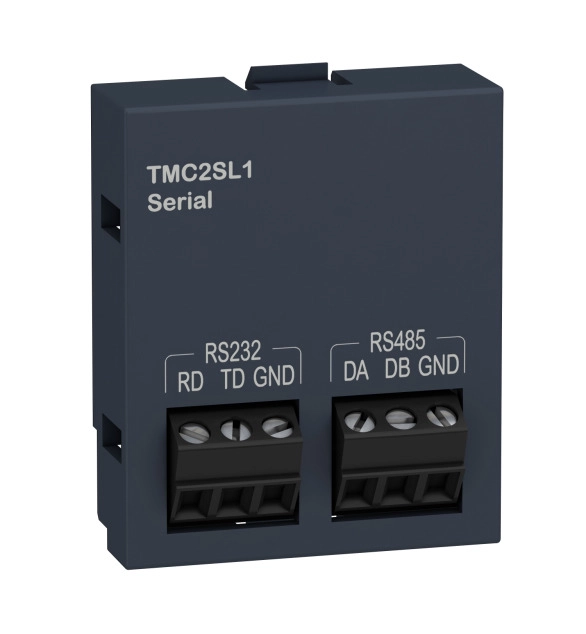

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
