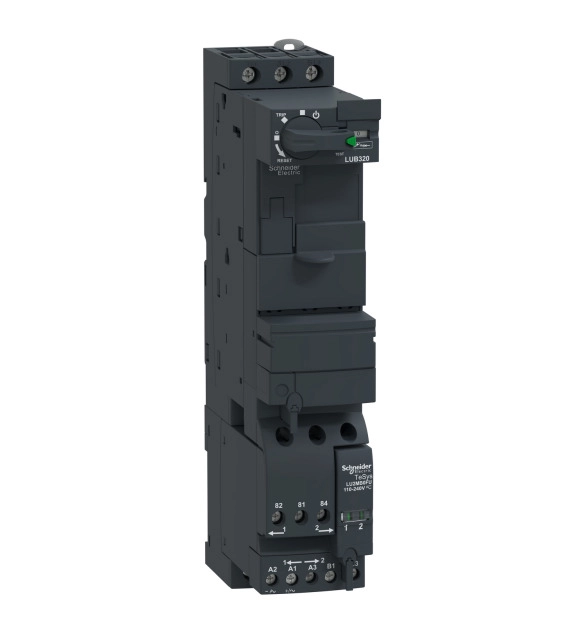

SCHNEIDER ELECTRIC Reversing power base, TeSys Ultra, 3P, 32A/690V, coil 110-240VAC/DC | Spark & Co
  • 3D
|

СКУ: LU2B32FU

SCHNEIDER ELECTRIC Reversing power base, TeSys Ultra, 3P, 32A/690V, coil 110-240VAC/DC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Degree of protection (IP)
    EV006405
  • Suitable for emergency stop
    FALSE
  • Voltage type for actuating
    EV000509
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    110
  • Rated control supply voltage Us at AC 60HZ
    110
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated operation power at AC-3, 400 V
    15
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    10000
  • Rated conditional short-circuit current, type 2, 230 V
    50000
  • Rated operation current Ie
    32
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    4000
  • With transformer
    FALSE
  • Ambient temperature, upper operating limit
    70
  • External reset possible
    FALSE
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rated operation current at AC-3, 400 V
    32
  • Rated conditional short-circuit current, type 2, 400 V
    50000
  • Number of command positions
    3
  • Width
    45
  • Coordination class according to IEC 60947-4-3
    EV006627
  • Depth
    126
  • Rated operation power at AC-3, 230 V, 3-phase
    7.5
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • With short-circuit release
    TRUE
  • Rated power, 575 V, 60 Hz, 3-phase
    15
  • Rated power, 460 V, 60 Hz, 3-phase
    15
  • Rated control supply voltage Us at DC
    110
  • Height
    224
  • Type of motor starter
    EV004002
  • Number of indicator lights

TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0FU to be supplied with 110-240V AC / 110-220V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
