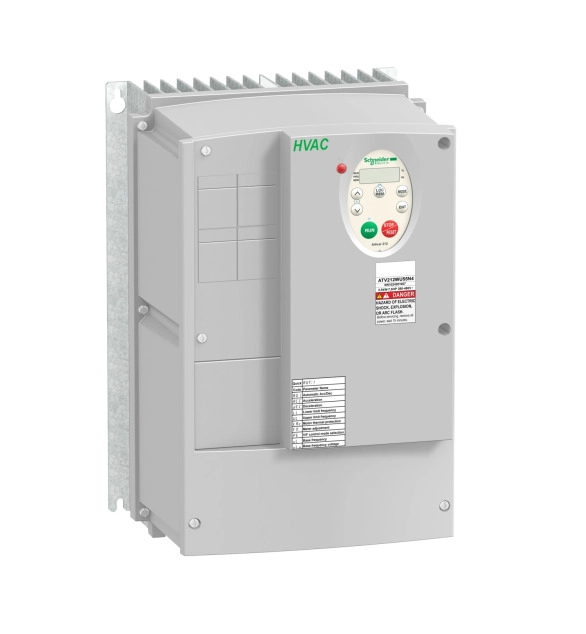

SCHNEIDER ELECTRIC Variable speed drive, Altivar 212, 3kW, 480V, 3 phases, with EMC class C2, IP55 /CF-25-01483/

• Brand
  Schneider Electric
• Degree of protection (IP)
  EV006420
• Supporting protocol for SERCOS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for EtherNet/IP
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFINET IO
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Supporting protocol for PROFIBUS
  FALSE
• Supporting protocol for TCP/IP
  FALSE
• Supporting protocol for KNX
  FALSE
• Supporting protocol for CAN
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• Supporting protocol for DeviceNet
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Supporting protocol for other bus systems
  TRUE
• Supporting protocol for SUCONET
  FALSE
• With control element
  TRUE
• With optical interface
  FALSE
• Number of HW-interfaces parallel
• Number of interfaces PROFINET
• Number of HW-interfaces other
• Number of HW-interfaces serial TTY
• Supporting protocol for Modbus
  TRUE
• Number of HW-interfaces RS-422
• Number of HW-interfaces RS-485
  1
• Number of HW-interfaces industrial Ethernet
• Number of digital outputs
• Number of analogue inputs
  2
• Number of analogue outputs
  1
• Number of HW-interfaces USB
• Number of HW-interfaces RS-232
• Width
  230
• Supporting protocol for BACnet
  FALSE
• Height
  340
• Type of converter
  EV009484
• Mains frequency
  EV008015
• Number of phases input
  EV000069
• Number of phases output
  EV000069
• Relative symmetric net voltage tolerance
  10
• Relative symmetric net frequency tolerance
  5
• Integrated breaking resistance
  FALSE
• Application in industrial area permitted
  TRUE
• 4-quadrant operation possible
  FALSE
• With PC connection
  TRUE
• Application in domestic- and commercial area permitted
  TRUE
• Mains voltage
  380
• Max. output voltage
  480
• Max. output at quadratic load at rated output voltage
  4
• Max. output at linear load at rated output voltage
  4
• Max. output frequency
  200
• Number of digital inputs
  3
• Supporting protocol for LON
  TRUE
• Nominal output current I2N
  9.1
• Depth
  208
