СКУ: BLRCH333A400B40

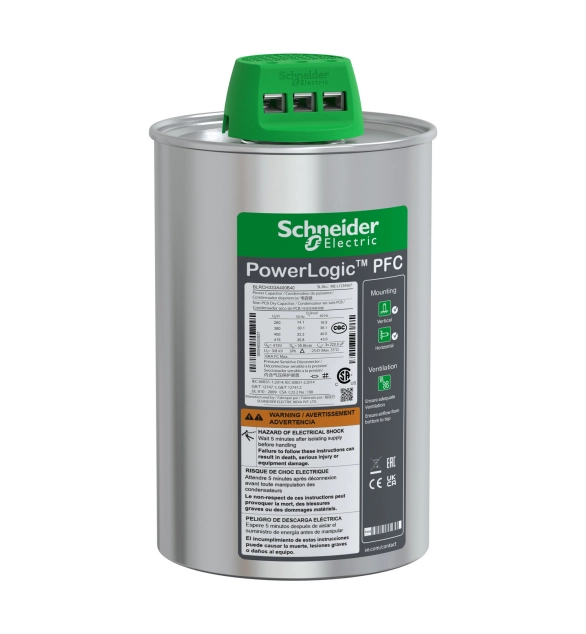

Кондензатор PowerLogic PFC Кондензатор, 33.3/40 kvar - 400 V - 50/60Hz
-
Brand
Schneider Electric
-
Model
EV000154
-
Length
242
-
Nominal voltage
380
-
Diameter
136
-
Capacity 2
-
Capacity
221
-
With insert contacts
TRUE
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 30.1 kVar at 380V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 3.2 kg.
