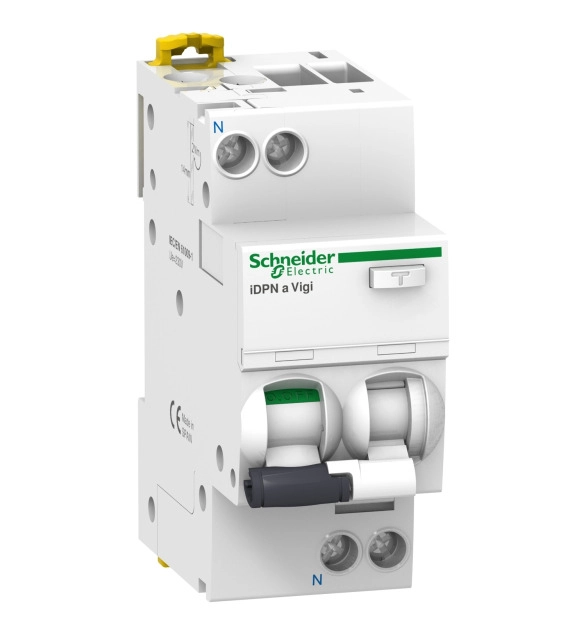

Комбин. ДТЗ IDPNA VIGI 32A C 30MA AC-TYPE RESIDUAL C

• Brand
  Schneider Electric
• Degree of protection (IP)
  EV006405
• Width in number of modular spacings
  2
• Number of poles (total)
  2
• Release characteristic
  EV000084
• Concurrently switching neutral conductor
  TRUE
• Flush-mounted installation
  FALSE
• Connectable conductor cross section multi-wired
  1
• Pollution degree
  3
• Number of protected poles
  1
• Rated current
  16
• Rated voltage
  230
• Ambient temperature during operating
  -25
• With interlocking device
  TRUE
• Anti-nuisance tripping version
  FALSE
• Leakage current type
  EV000896
• Rated fault current
  0.03
• Surge current capacity
  0.25
• Built-in depth
  44
• Voltage type
  EV000460
• Connectable conductor cross section solid-core
  1
• Over voltage category
  3
• Frequency
  EV008013
• Rated impulse withstand voltage Uimp
  4
• Current limiting class
  3
• Rated insulation voltage Ui
  400
• Rated short-circuit breaking capacity Icn according to EN 61009-1
  10
• Disconnection characteristic
  EV003978
• Rated short-circuit breaking capacity according to EN 61009
  10
