СКУ: ABL8RPM24200
SCHNEIDER ELECTRIC Regulated switch power supply, 1 or 2 phase, 100-240V, 24V, 20A
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Width
56
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Modular version
FALSE
-
Depth
125
-
Suitable for safety functions
TRUE
-
Stabilized
TRUE
-
Short-circuit-proof
TRUE
-
Output voltage stabilized
TRUE
-
Direct mounting possible
FALSE
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
1st secondary output voltage
24
-
Rated supply voltage at AC 50 Hz
100
-
Rated supply voltage at AC 60 Hz
100
-
Power output
120
-
Nominal value output current 1
5
-
Max. output current 1
5
-
Height
143
-
Secondary voltage adjustable
TRUE

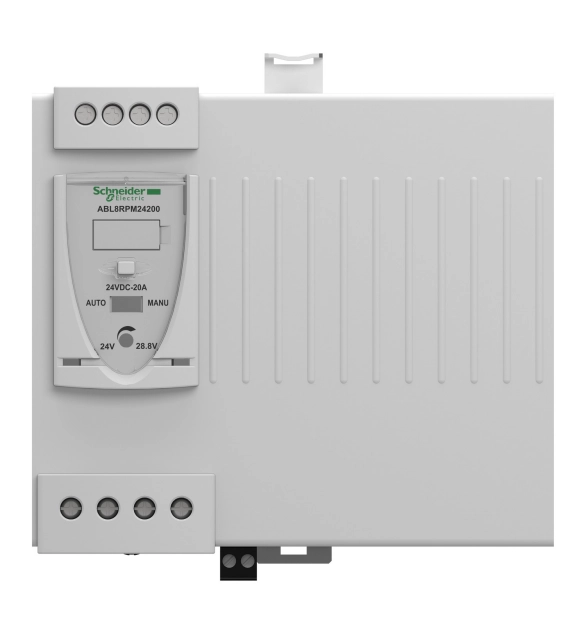

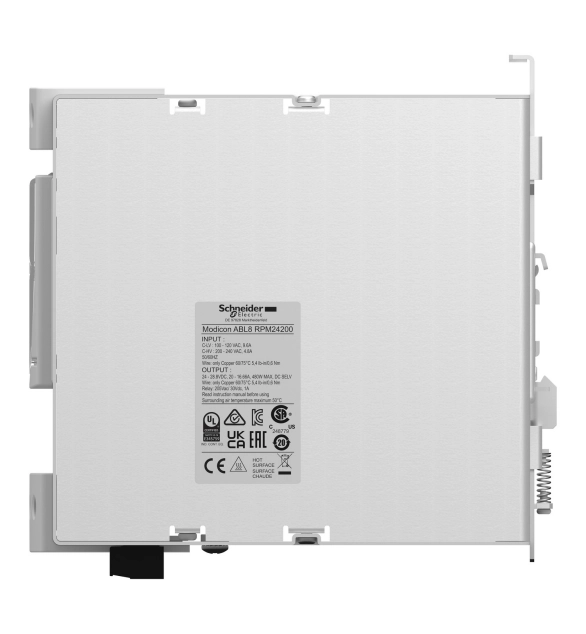

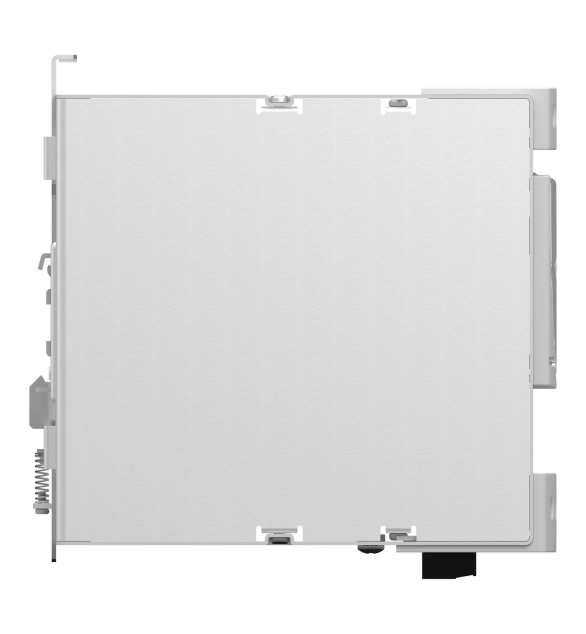

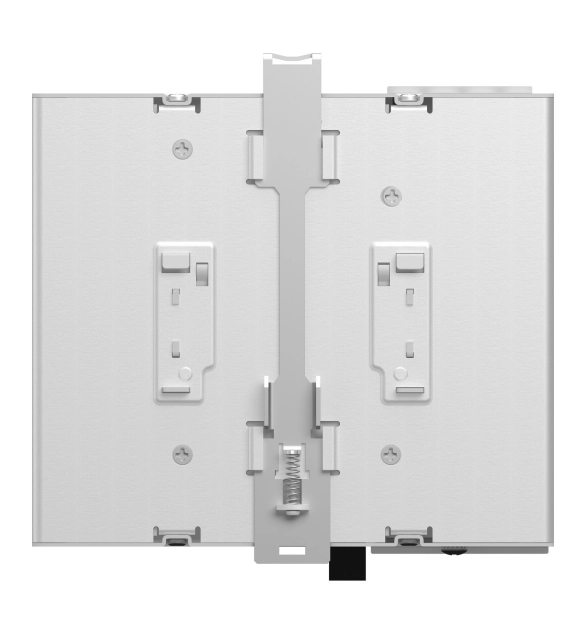

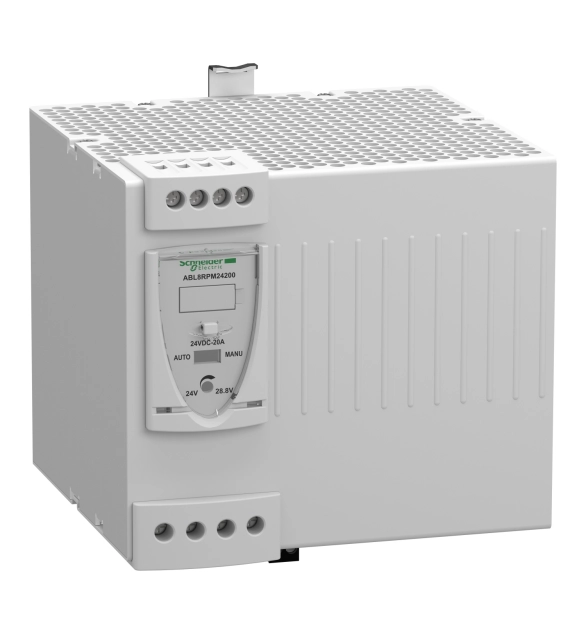

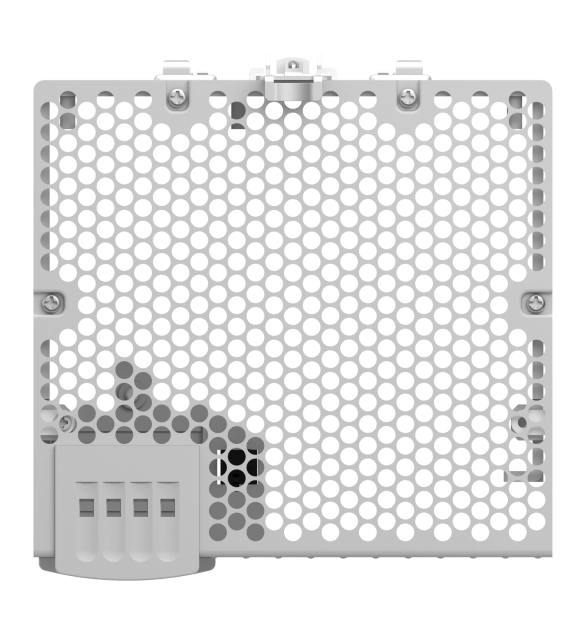

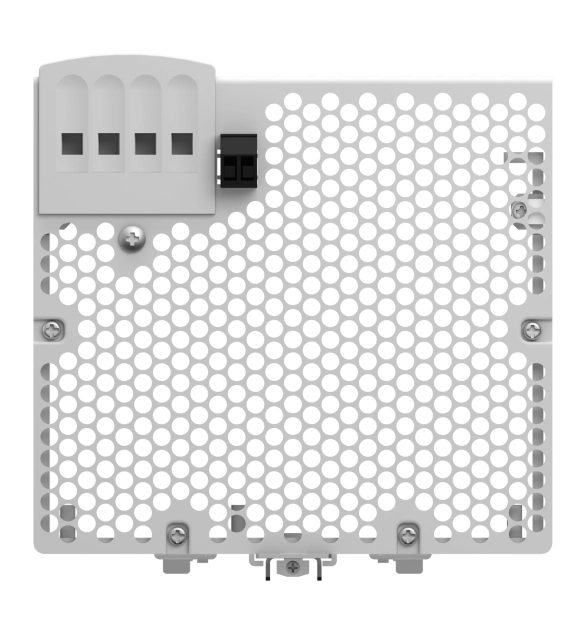

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It has LED diagnostics indicator available in the front for troubleshooting instantly. It operates from minus 25degrees celcius to plus 50degrees celcius, and from 0meter to 2000meters. It measures 125mm high, 146mm wide and 145mm deep. It weighs 1.6kg. It is a power supply for industrial use. It conforms to CE marking, CCSAus, EAC, KC, RCM and UL certifications. GB2CD16/12, GB2CB06/07, GB2CD06/07, GB2DB06/07, GB2CS06/07 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
