СКУ: NSYS3D6640

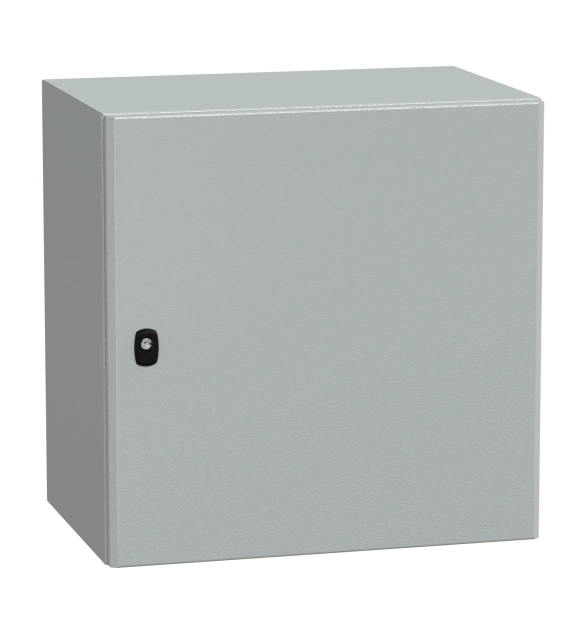

Шкаф S3D H600xW600xD400 one plain door без МП
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Width
600
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Depth
400
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Height
800
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50
PanelSeT S3D is a monobloc wall-mounting enclosure designed for multi-purpose applications It is made of steel with an epoxy-polyester powder finish and is grey-coloured (RAL 7035) This enclosure has a nominal height, width and depth of 800mm, 600mm and 250mm, respectively The enclosure has a single door with a three-point lock and a 3mm double-bar insert The door is reversible, allowing it to be opened up to 120° for easy access to the equipment inside It has a NEMA 4X/13 rating and an IP66 (IEC 60529) rating for dust and water resistance Furthermore, it has an IK10 (IEC 62262) rating for high impact resistance The enclosure consists of a body, a door, a lock, and a cable gland plate The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 20,2kg It is certified by cUL, BV, GL, UL, LR, and DNV
