СКУ: VW3M5101R100

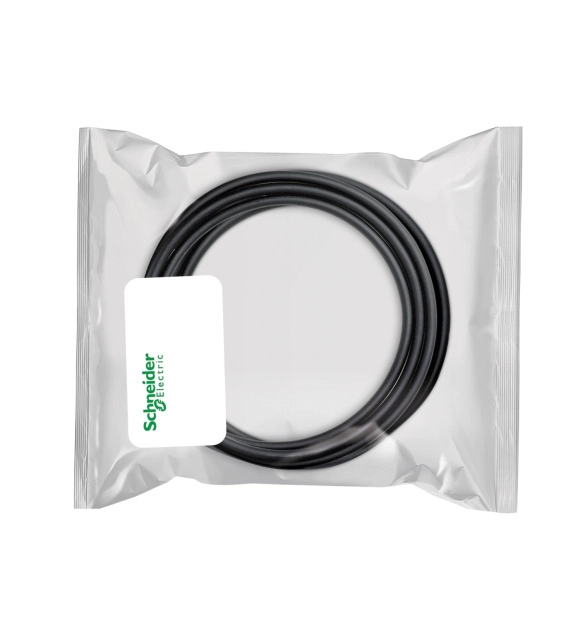

SCHNEIDER ELECTRIC Power cable - between servomotor BDH/BSH and servodrive, 4x1.5mm²+2x1mm², 10m.
-
Brand
Schneider Electric
-
Frequency
50
-
Degree of protection (IP)
EV000154
-
Euro class acidity according to EN 13501-6
EV000494
-
With protective conductor
FALSE
-
Spiralized cable
FALSE
-
Smoke development class according to EN 13501-6
EV000494
-
Reaction-to-fire class according to EN 13501-6
EV000494
-
With cord switch
FALSE
-
Oil resistant (according to EN 60811-404)
TRUE
-
Euro class flaming droplets/particles according to EN 13501-6
EV000494
-
Material outer sheath
EV000154
-
Connector system system-oriented
FALSE
-
Colour outer sheath
EV000270
-
Number of cores
6
-
Nominal voltage
200
-
Temperature resistance
-40
-
Connection 1
EV008543
-
Connection 2
EV001106
-
Nominal cross section conductor
1.5
-
Length
10
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This power cable is an accessory of servo drives and motors. The length of this cable is 10m. It is furnished with M23 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 1.5mm² + 2 x 1mm². It is used between servo motor BDH, BSH and servo drive. It weighs 2.29kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives and with servo motors BMH and BSH. With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines, the perfect answer to your technical and economic challenges. The high concentrate solutions for your machines.
