СКУ: LC1D65AEHE

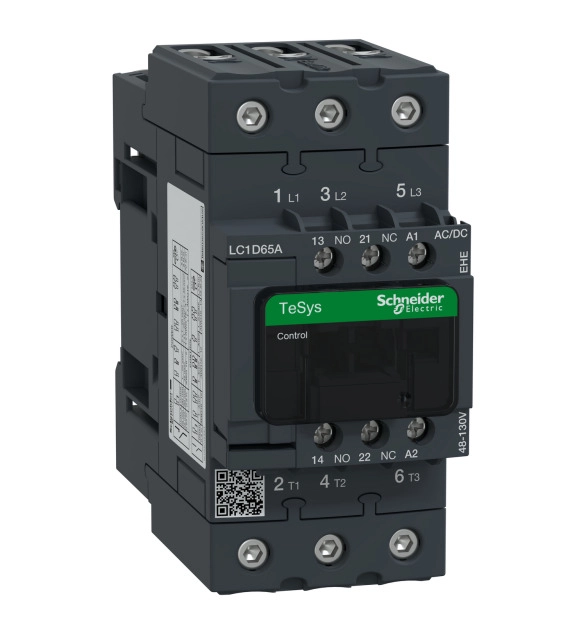

SCHNEIDER ELECTRIC Contactor 3P 65A AC-3 440V coil 48-130V AC/DC EverLink

  • Brand
    Schneider Electric
  • Rated operation power at AC-3, 400 V
    22
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at DC
    100
  • Rated control supply voltage Us at AC 50HZ
    100
  • Rated control supply voltage Us at AC 60HZ
    100
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    25
  • Rated operation power at AC-4, 400 V
    11
  • Rated operation current Ie at AC-1, 400 V
    80
  • Rated operation current Ie at AC-3, 400 V
    50
  • Type of electrical connection of main circuit
    EV000154

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3/3e (30kW/400V). It provides a low consumption 24V DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
