СКУ: GV3L50

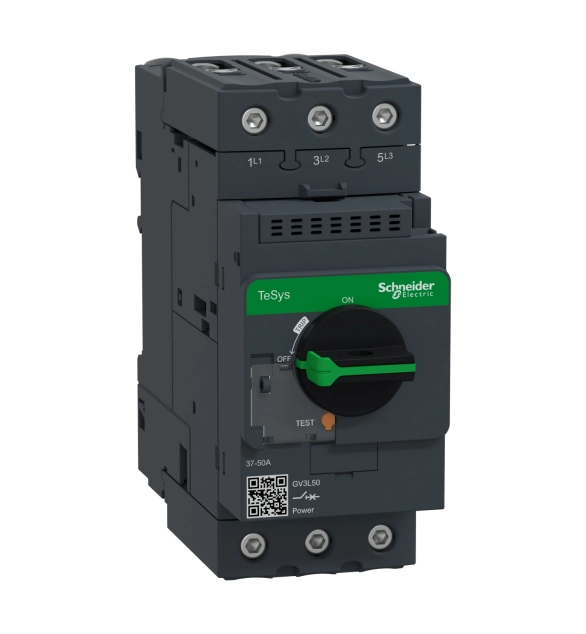

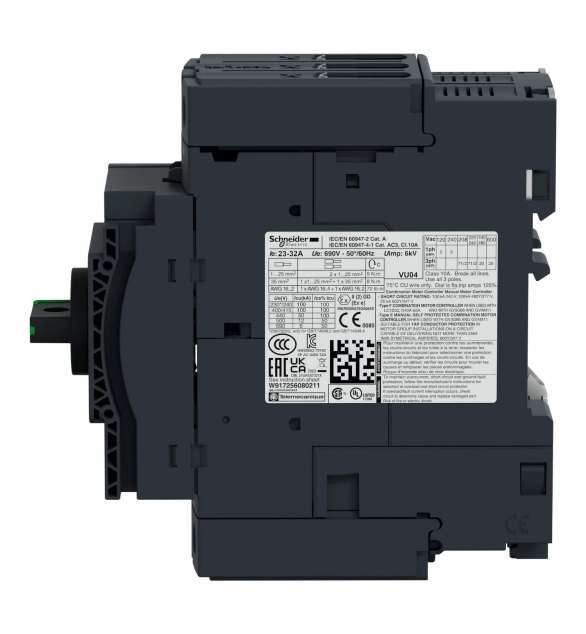

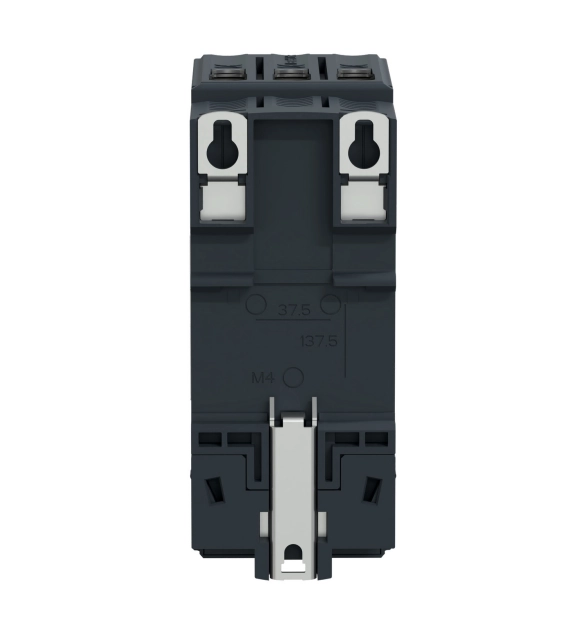

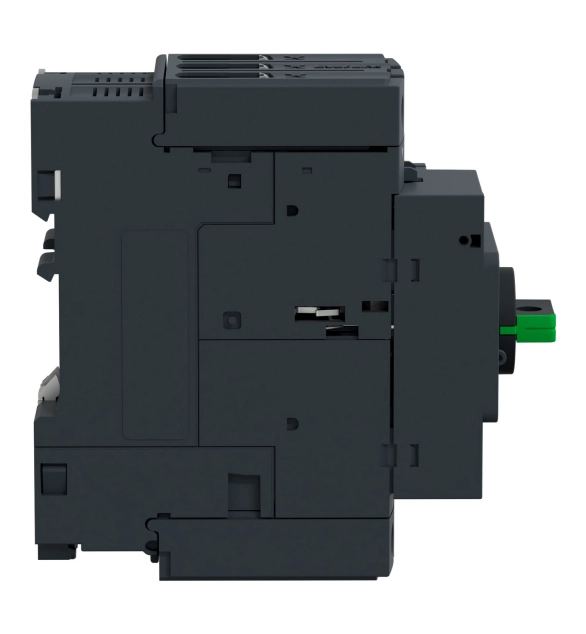

SCHNEIDER ELECTRIC Motor circuit breaker, TeSys GV3, 3P, 50A, magnetic, rotary handle, EverLink terminals

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Rated operating voltage
    690
  • Rated operation power at AC-3, 400 V
    22
  • Degree of protection (IP)
    EV006405
  • Type of control element
    EV000092
  • With integrated under voltage release
    FALSE
  • Rated permanent current Iu
    50
  • Width
    55
  • With integrated auxiliary switch
    FALSE
  • Switch off technique
    EV006116
  • Phase failure sensitive
    TRUE
  • With thermal protection
    FALSE
  • Device construction
    EV009311
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50
  • Depth
    136
  • Height
    132
  • Rated operation power at AC-3, 230 V
    15
  • Adjustment range undelayed short-circuit release
    700

TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW/400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA/400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
