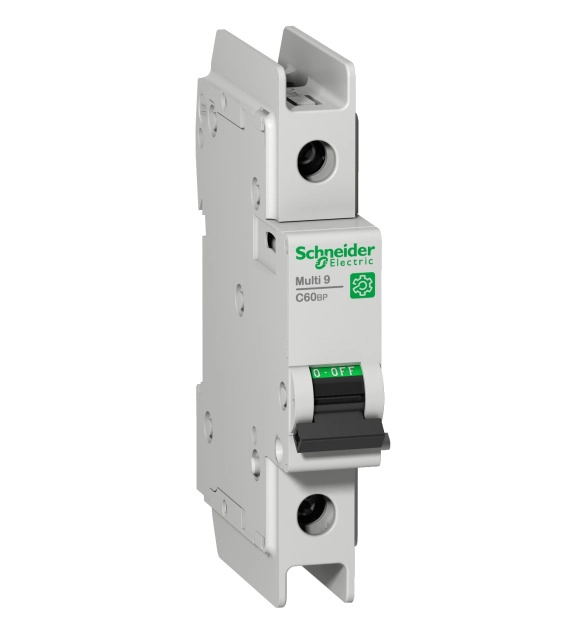

SCHNEIDER ELECTRIC Miniature circuit breaker Multi9 C60BP, 1P, 1A, C curve

This Multi9 C60BP product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 1A rated current, and a C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC, conforming to EN/IEC 60947-2 standard. This product complies with industrial standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing and protecting equipment from electrical threats. This product protects against short-circuit and overload currents. This product is dedicated to original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The rated operational voltage is 240VAC. The rated insulation voltage is 500VAC, and the rated impulse withstand voltage is 6kV. It can be clipped on a DIN rail, and its width is 2 pitches of 9mm. The pollution degree is 3. The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. The product colour is light grey (RAL 7035). It has an IP20 degree of protection on its terminals. The operating temperature is from -30°C to 70°C. The storage temperature is from -40°C to 80°C.
