SCHNEIDER ELECTRIC Miniature circuit breaker, Acti9 C120N, 3P, 100A, C curve /CF-24-00643/ | Spark & Co
  • 3D
  • 3D
|

СКУ: A9N18367

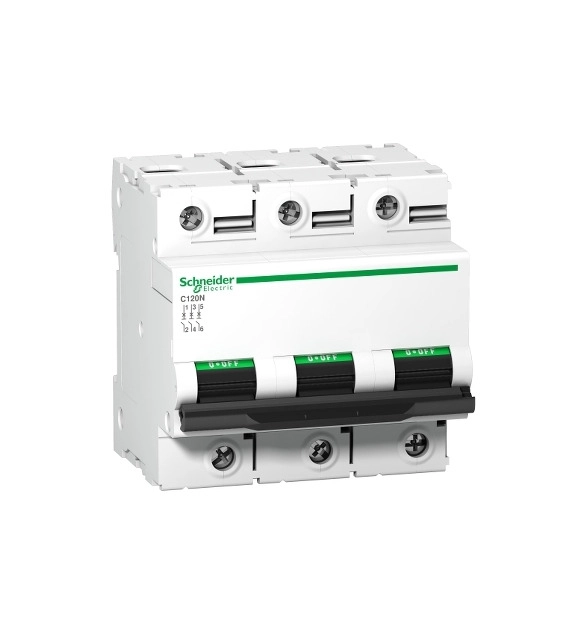

SCHNEIDER ELECTRIC Miniature circuit breaker, Acti9 C120N, 3P, 100A, C curve /CF-24-00643/

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    6
  • Frequency
    50
  • Additional equipment possible
    TRUE
  • Rated voltage
    400
  • Release characteristic
    EV000084
  • Concurrently switching neutral conductor
    TRUE
  • Flush-mounted installation
    FALSE
  • Explosion-proof
    FALSE
  • Connectable conductor cross section solid-core
    1.5
  • Over voltage category
    4
  • Connectable conductor cross section multi-wired
    1
  • Pollution degree
    3
  • Rated current
    63
  • Number of poles (total)
    4
  • Number of protected poles
    4
  • Ambient temperature during operating
    -25
  • Built-in depth
    44
  • Rated impulse withstand voltage Uimp
    6
  • Voltage type
    EV000460
  • Rated insulation voltage Ui
    500
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    20
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10
  • Current limiting class
    1

This Acti9 iPRD20 surge arrester protects 1P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD20 is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.1kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 85mm x (D) 69mm. The weight is 110g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
