СКУ: PKF16G423
Kонтакт за табло прав 16A 2P-E 200-250V IP44 50-60Hz PKF16G423
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
RAL-number
7035
-
Rated frequency
50
-
Connection system
EV001008
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Cable entry
EV000494
-
Angle of plug
EV000409
-
Voltage according to EN 60309-2
EV009024
-
Rated voltage
200
-
Identification colour
EV000080
-
IEC-amperage
16
-
Flange size horizontal
65
-
Drill hole distance horizontal
52
-
Drill hole distance vertical
60
-
Flange size vertical
85

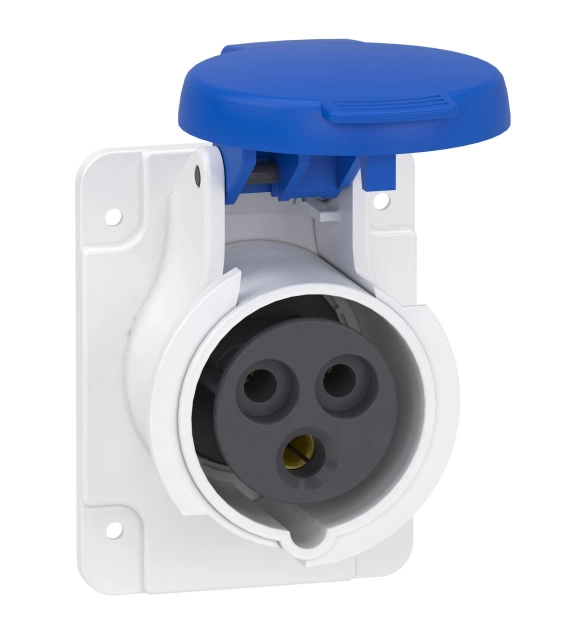

This Mureva PK socket with captive screws connection is angled panel mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 73mm x (H) 85mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
