СКУ: LSS100200

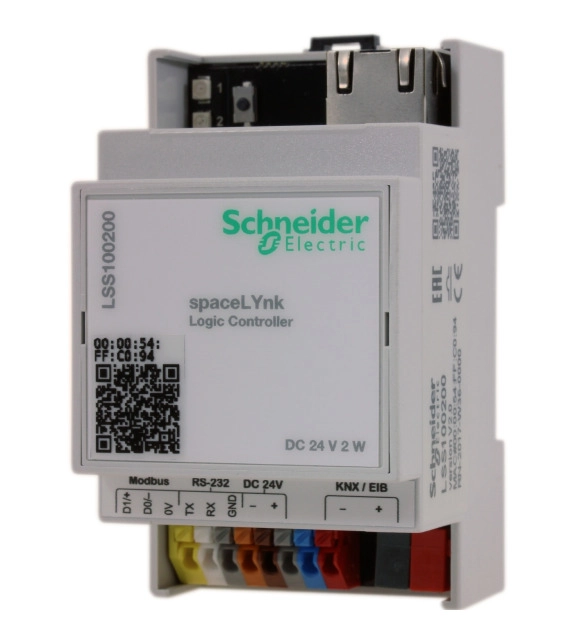

SCHNEIDER ELECTRIC Logic controller SpaceLYnk KNX bacnet with 500BACnet
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
3
-
With LED indication
TRUE
-
Updateable
TRUE
-
IR interface
FALSE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Web-Server
TRUE
-
Demounting protection
FALSE
-
Other bus systems
EV000154
-
Bus system LON
FALSE
-
Protocol
EV006511
-
Provider dependent
FALSE
-
Operating voltage
24
-
Voltage type
EV000461
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Radio frequent bidirectional
FALSE
-
Bus system KNX
TRUE
-
Radio interface
FALSE
-
Model
EV006485
-
Visualization
TRUE
SpaceLYnk from Schneider Electric is the easiest way to build a complete Building Automation Solutions for commercial segments. Complete Building Automation solution for Small and Medium building with a complete architecture including KNX, DALI Control), Metering (Modbus offer, Smartlink RTU and IP) and boiler management (SSL). Complete Building Automation solution for Large Building with a complete architecture managed by BMS from Schneider Electric and KNX, DALI Control and Metering (Modbus offer, Smartlink RTU and IP). SpaceLYnk can be used in several ways: As a gateway to translate and enable communication between different products. As an aggregator to stock, analyze, and send the data (.csv file for example). As an user interface to display relevant informations on mobile devices. As an event controler that sends email in case of issues. Applications: Logical functions. WEB SCADA visualization for PC and touch-devices. Cross-standard gateway between KNX and Modbus RTU/TCP. BACnet Server (500 points). Integration with third party devices over RS-232 (IR, AV). Scheduling. Camera streaming. Data logger with trends. Pre-made Modbus templates. Easy bloc programming. Up to 50 users with different login and password. BACnet certified BACnet Application Specific Controller (B-ASC). New icons. Supply voltage: 24 V DC. Power consumption: 2 W. LED indicator 1: Green LED (CPU load). LED indicator 2: Green LED (Operation) or Red LED (Reset). Interface: 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 k Ohm, no termination),1x RS-232, 1x USB2.0, 1x Reset push button. Terminal: KNX bus: Bus connecting terminal 2 x 0.8 mm. Power supply: Clamp, 0.5 mm²-1.5 mm². Serial: Clamp, 0.5 mm²-1.5 mm². Operation: -5°C to +45°C. Environment: Can be used at elevations up to 2000 m above sea level (MSL). Max. humidity: 93 %, no condensation. Dimension: 90 x 52 x 58 mm (HxWxD). Device width: 3 modules, approx. 54 mm. Note: Visualisations can be generated automatically for smartphone, tablet and touch panels using the EConfigure KNX Lite (LSS900100) software.
