СКУ: A9N26899
OF SD 24V CC AVEC INTERFACE TI24
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
With auto test for earth leakage function
FALSE
-
Width in number of modular spacings
0.5
-
Suitable for max. number of poles main contact unit (total)
4
-
Suitable for max. current main contact unit
125
-
Voltage type for actuating
EV000461
-
Number of fault-signal switches
1
-
Installed at the factory
FALSE
-
Rated voltage
24
-
Device fitting
EV009775
-
Additional equipment
EV009833
-
Rated switch current
0.1
-
Number of contacts as change-over contact

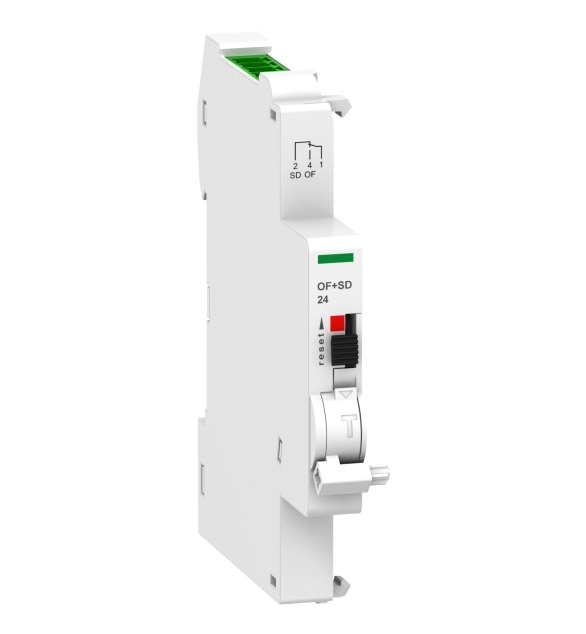

This Acti9 OF+SD 24 electrical auxiliary is an open/close and fault contact. It is compatible with Acti9 devices such as DPN Vigi, DT60, IDc, DPN, iDPN, ITG40, RCCB-ID 125A, connectors Ti24, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C40, ID C40, C120, DT40, and C120NA-DC. It also reports the electrical fault, actuation of the tripping auxiliary, open or closed position of the associated device information to a programmable logic controller. The remote indication of position and tripping upon a fault of the associated breaker. The 2 contacts (1NO + 1NC) can report the signalling information of the associated device to the Acti9 Smartlink. The width in 9mm pitches is 1. It is a ComReady device. There is a Test function on the toggle. The rated operational voltage is 24VDC +/-20%. Its current rating is from 2mA to 100mA. The operating temperature is from -25°C to 70°C. The storage temperature is from -40°C to 85°C. This product complies with IEC 60947-5-1 and IEC 60947-5-4 standards.
