СКУ: LV434063
SCHNEIDER ELECTRIC I/O (input/output) application module, Enerlin'X (LV434063/LV434063AA)
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width
140
-
Width in number of modular spacings
8
-
Frequency
50
-
Calibrated
TRUE
-
Degree of protection (NEMA)
EV000599
-
Depth
110
-
Approval
EV010951
-
Escapement mechanism
FALSE
-
Accuracy class
EV000074
-
Tariff type
EV009223
-
With lock code
FALSE
-
Type of meter
EV000101
-
Type of interface
EV000154
-
Model
EV010942
-
Pulse output
EV000494
-
Energy type
EV010946
-
Type of indication
EV000494
-
Pole type
EV010964
-
Mounting method
EV010967
-
Measurement type load profile
FALSE
-
EEC40 signature
FALSE
-
Nominal voltage (Un) L-L
-
Suitable for
EV011029
-
Max. current (Imax)
756
-
Height
91
-
Nominal current (In)
630

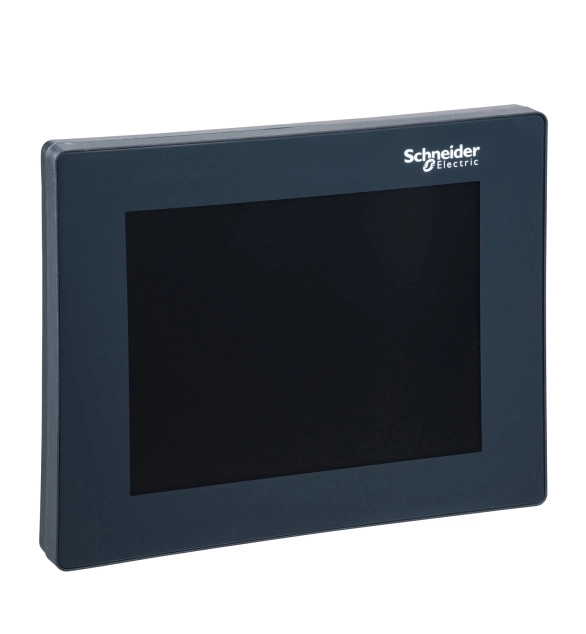

This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.
