СКУ: DF223NC
Разединител N 125A за предпазители 22 X 58
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Mounting method
EV000242
-
With optical defect indication
FALSE
-
Width in number of modular spacings
8
-
Number of poles
4
-
Concurrently switching neutral conductor
TRUE
-
Lockable
FALSE
-
Built-in depth
70
-
Nominal voltage
690
-
For fuse size
EV010288

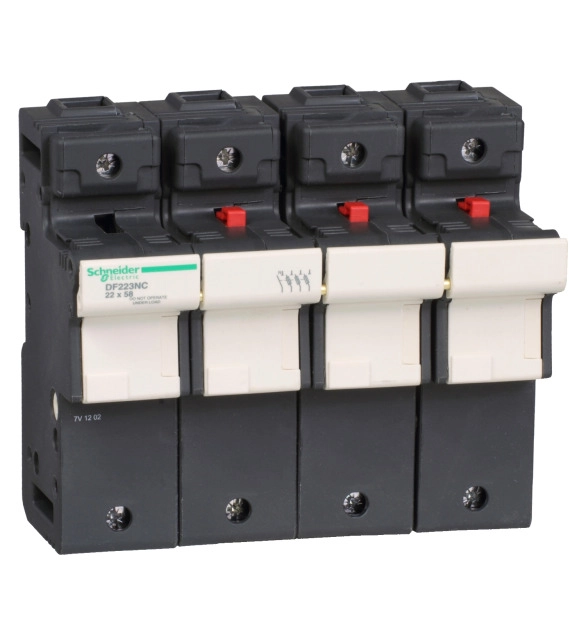

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA at 400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link. Compact (140mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 1 unit. Multi standards certified (IEC, UL recognized, CSA, EAC).
