SCHNEIDER ELECTRIC Illuminated push button, red, 22mm, LED, push and push to release, 1NO, 24VAC | Spark & Co
  • 3D
|

СКУ: XB7NJ04B1

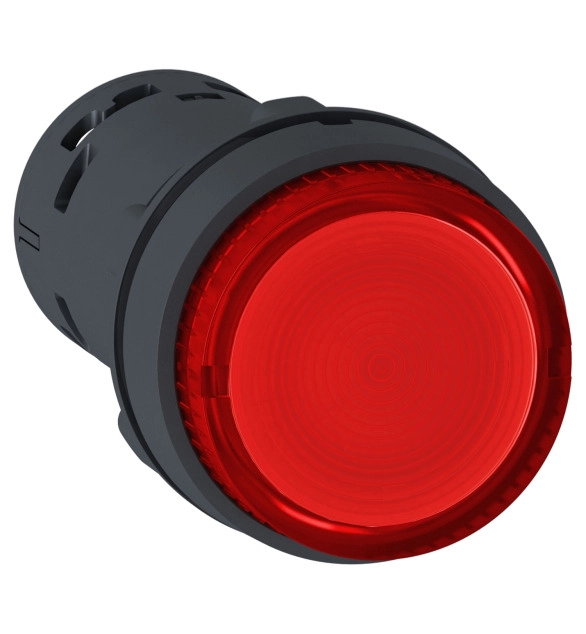

SCHNEIDER ELECTRIC Illuminated push button, red, 22mm, LED, push and push to release, 1NO, 24VAC

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Type of electric connection
    EV000415
  • Spring-return
    FALSE
  • Hole diameter
    22.5
  • Material front ring
    EV000139
  • Switching function latching
    TRUE
  • Construction type lens
    EV000167
  • With front ring
    TRUE
  • Colour front ring
    EV000206
  • Degree of protection (IP)
    EV006419
  • Type of button
    EV003619
  • Number of command positions
    1
  • Suitable for illumination
    TRUE
  • Degree of protection (NEMA)
    EV007990
  • Colour button
    EV008843
  • Supply voltage lamp
    24
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact

This Harmony XB7, illuminated monolithic red push button operates with a latched push to release mechanism, is supplied with 24V AC/DC and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illuminated head, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
