СКУ: GV4APN01
SCHNEIDER ELECTRIC Extended rotary handle black IP54, HS code: 85389099, COO:CZ, 0.7kg /PO:40915738/
-
Brand
Schneider Electric
-
Colour
EV000206
-
Suitable for switch disconnector
FALSE
-
Suitable for power circuit breaker
TRUE
-
Suitable for emergency stop
FALSE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
With key lock
FALSE
-
With extension shaft
TRUE

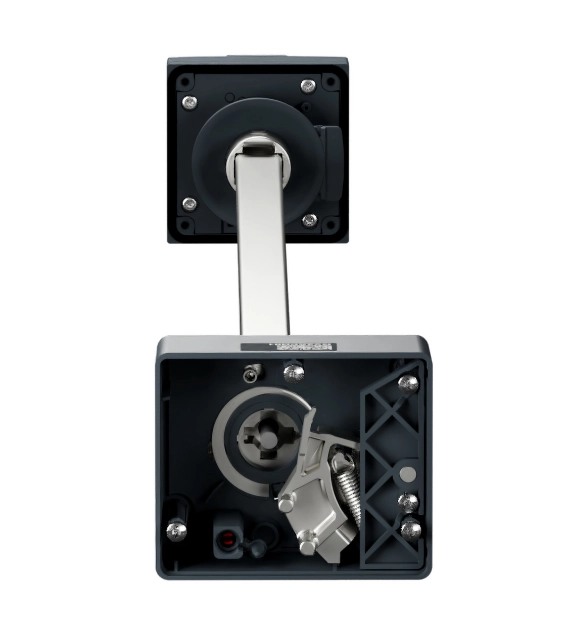

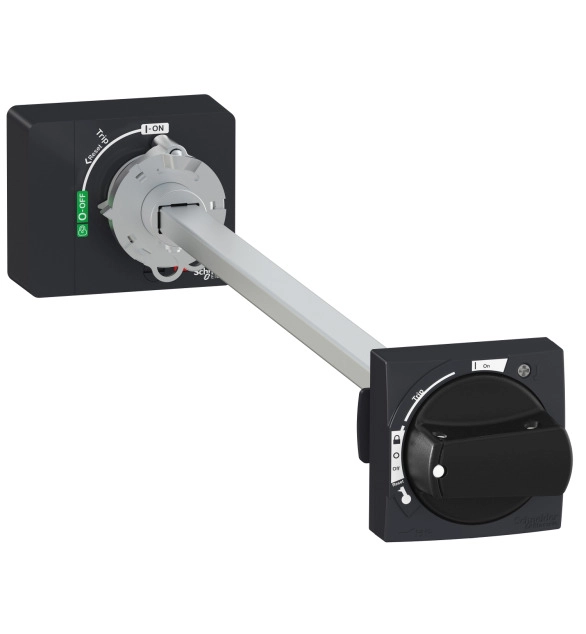

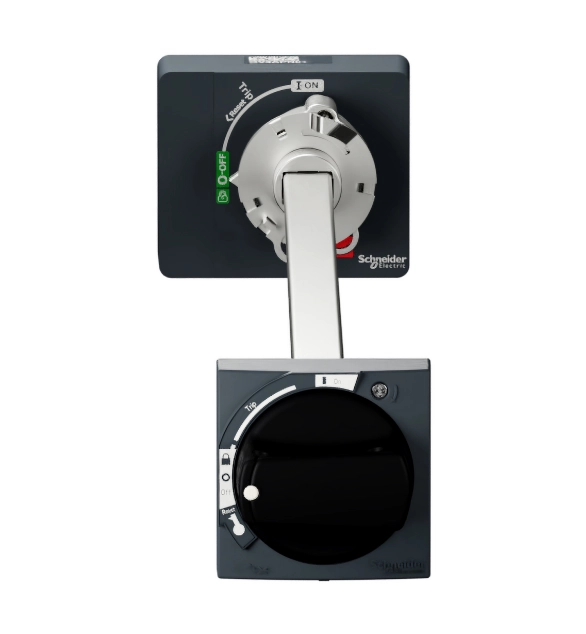

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
