SCHNEIDER ELECTRIC Encoder interface module, Lexium 32, card for analog output for machine and motor | Spark & Co
  • 3D
  • 3D
|

СКУ: VW3M3403

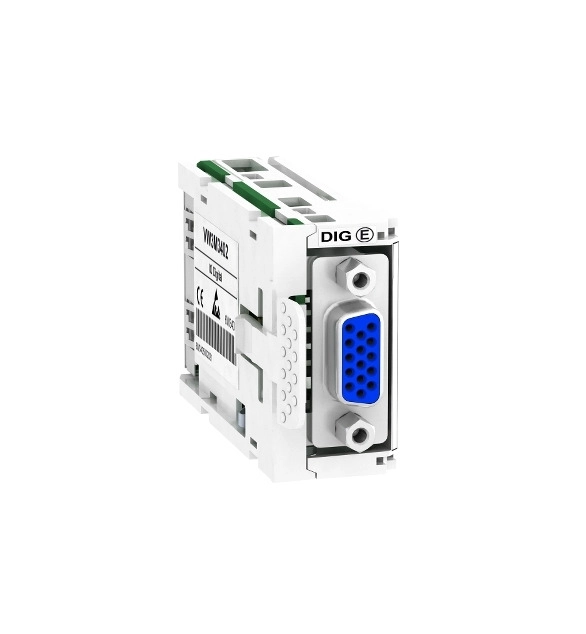

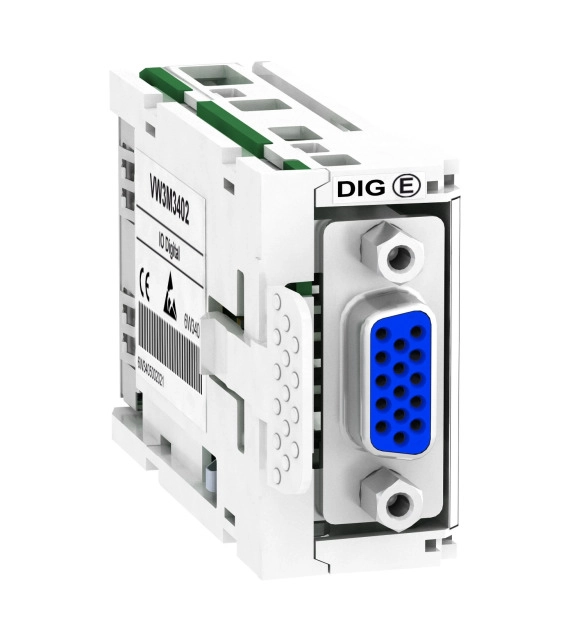

SCHNEIDER ELECTRIC Encoder interface module, Lexium 32, card for analog output for machine and motor

  • Brand
    Schneider Electric
  • Accessory
    TRUE
  • Spare part
    FALSE
  • Type of electrical accessory/spare part
    EV000154
  • Type of mechanical accessory/spare part
    EV000154

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors. This I/O connector is an accessory designed for Lexium 28 servo drives. It is a SUB-D 50-pin connector for I/O interface marked CN1 located on Lexium 28 servo drive front face. It is designed to wire the 8 programmable discrete inputs, 2 fast capture inputs, 1 STO safety function input, 5 logic outputs, 1 pulse train output. It weighs 0.100kg. Servo motors BCH2 in combination with Lexium 28 servo drives are designed for application such as material working, material handling, assembly line, packaging. It is sold in lots of 3 units. Lexium 28 servo drives & Lexium BCH2 servo motors are the Optimized servo bundles for compact machines. Lexium 28 & Lexium BCH2 are optimized bundles for easy integration into machines, embedding communication interfaces, safety functions and DC bus sharing.
