SCHNEIDER ELECTRIC Enclosure Spacial S3D plain door with mount.plate, H300xW300xD150 IP66 RAL7035 | Spark & Co
  • 3D
|

СКУ: NSYS3D3315P

SCHNEIDER ELECTRIC Enclosure Spacial S3D plain door with mount.plate, H300xW300xD150 IP66 RAL7035

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Depth
    150
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    300
  • Width
    300
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

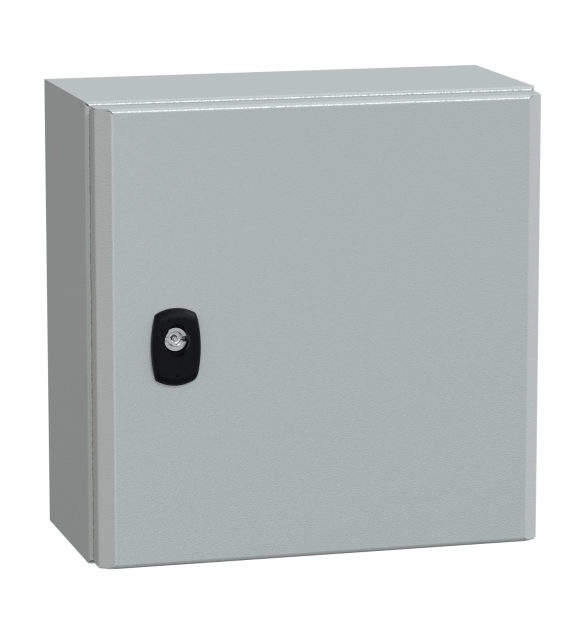

PanelSeT S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It has a nominal height, width and depth of 300mm, 300mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one plain door with a three-point lock, one cable gland plate and one mounting plate made of galvanised steel The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 4,84kg It has a NEMA 4X/13 rating and is resistant to dust and water with an IP66 rating (IEC60529) It also has an IK10 (IEC62262) rating, making it highly impact-resistant Additionally, it has product certifications from cUL, UL, BV, LR, GL and DNV
