СКУ: A9N18599

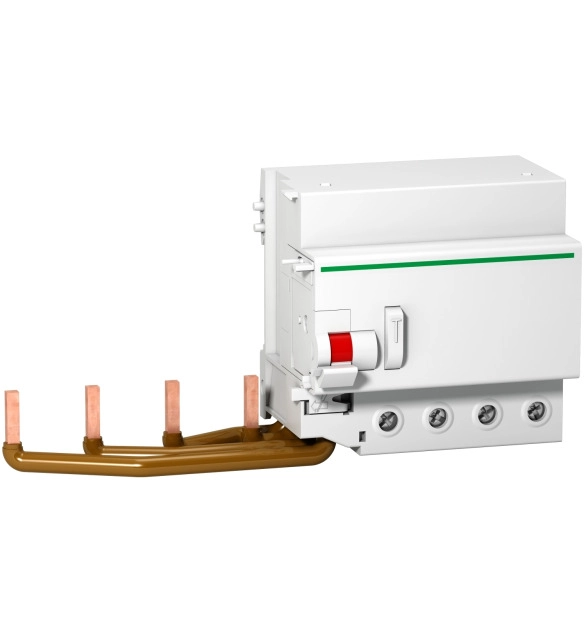

SCHNEIDER ELECTRIC Еarth leakage add-on block Vigi C120, 4P, 500mA, class A si
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
4
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Nominal voltage
230
-
Delay adjustable
FALSE
-
Surge current capacity
3
-
Rated fault current adjustable
FALSE
-
Leakage current type
EV000896
-
Ambient temperature during operating
25
-
Nominal current
125
-
Anti-nuisance tripping version
TRUE
-
Rated impulse withstand voltage Uimp
6
-
Connectable conductor cross section solid-core
1
-
Rated insulation voltage Ui
500
-
Frequency
EV008013
-
With interlocking device
FALSE
-
Rated fault current
0.5
-
Max. delay time
This Acti9 Vigi C120 is a modular add-on residual current devices. It has 4P with 4 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A-SI type with a sensitivity of 500mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 10. The product color is white (RAL9003). The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The weight is 0.58kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.
