СКУ: A9Y82725

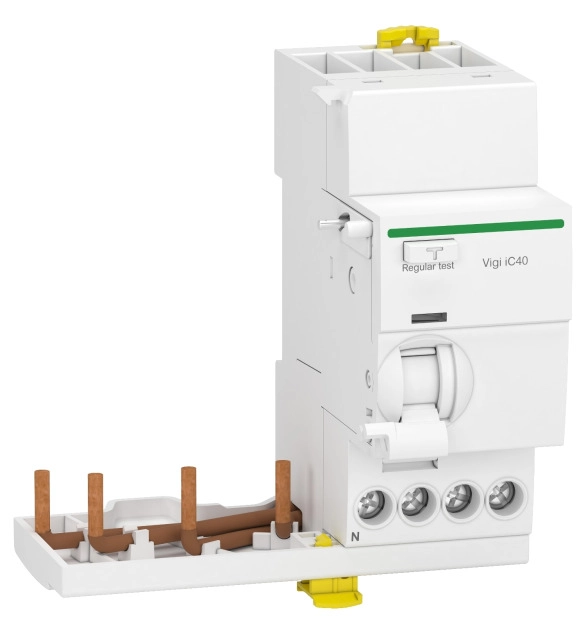

SCHNEIDER ELECTRIC Differential Block 3P+N Pole RCD, 25A Vigi iC40, 30mA
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
4
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Rated fault current adjustable
FALSE
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Surge current capacity
0.25
-
Connectable conductor cross section solid-core
1
-
Ambient temperature during operating
-5
-
Rated impulse withstand voltage Uimp
4
-
Leakage current type
EV000460
-
With interlocking device
FALSE
-
Rated insulation voltage Ui
440
-
Nominal voltage
400
-
Nominal current
25
-
Max. delay time
This Acti9 Vigi iC40 is a modular add-on residual current devices. It is a 3P+N and rated current is 25A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. This product is compliant with EN/IEC 61009-2-1 standard. Electrical endurance goes up to 10000 cycles. Mechanical endurance goes up to 20000 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 90mm x (H) 99.5mm x (D) 74mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
