SCHNEIDER ELECTRIC Contactor TeSys D S207 3P(3NO) AC-3 25A <=440V coil 110V DC low | Spark & Co
  • 3D
|

СКУ: LC1D256FLS207

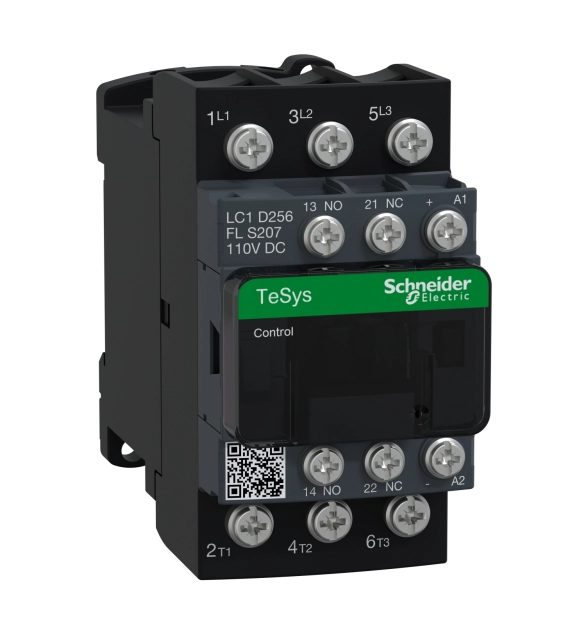

SCHNEIDER ELECTRIC Contactor TeSys D S207 3P(3NO) AC-3 25A <=440V coil 110V DC low

  • Brand
    Schneider Electric
  • Rated operation power at AC-3, 400 V
    11
  • Voltage type for actuating
    EV000461
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated control supply voltage Us at DC
    110
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    12
  • Rated operation power at AC-4, 400 V
    5.5
  • Rated operation current Ie at AC-1, 400 V
    40
  • Rated operation current Ie at AC-3, 400 V
    25
  • Type of electrical connection of main circuit
    EV000154
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 3 poles (3NO), for motor control in railway applications up to 25A/690V AC-3/3e (11kW@400V). It provides a low consumption 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. It procures 3600 cyc/h for operating rate and environment temperature under 60°C. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Sustainability compliant.
