СКУ: LC1DT20BD

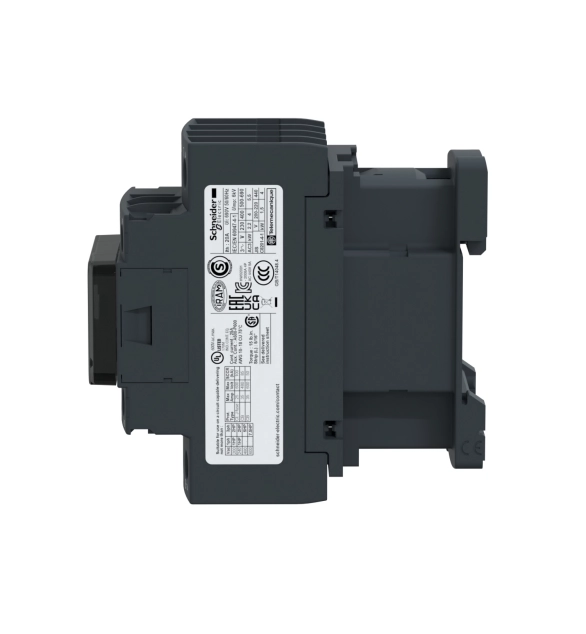

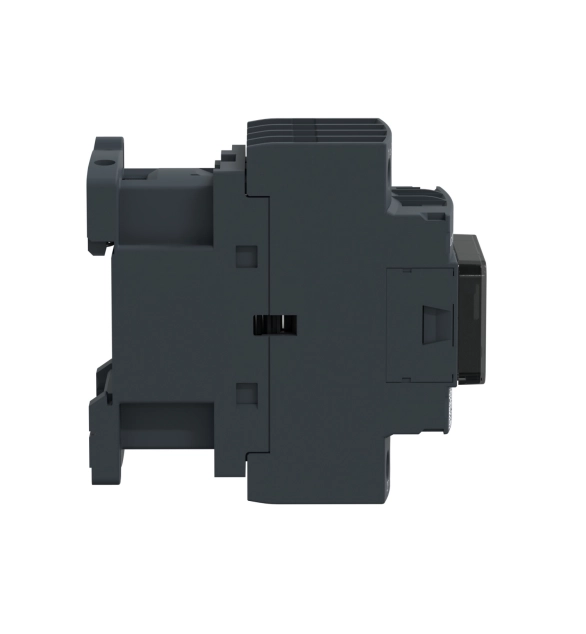

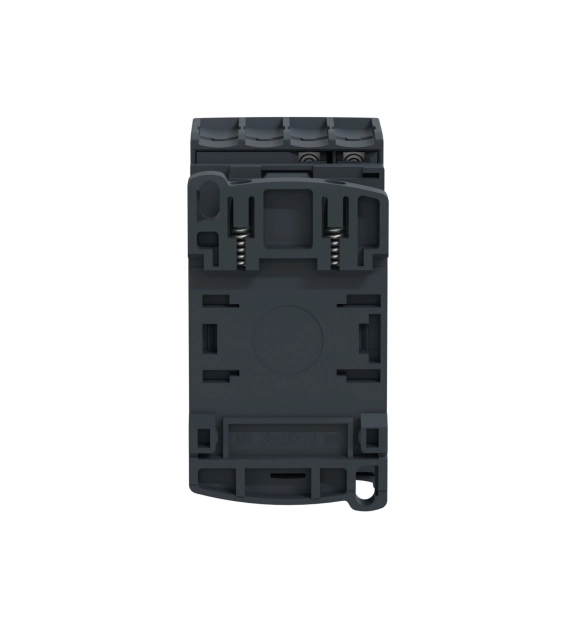

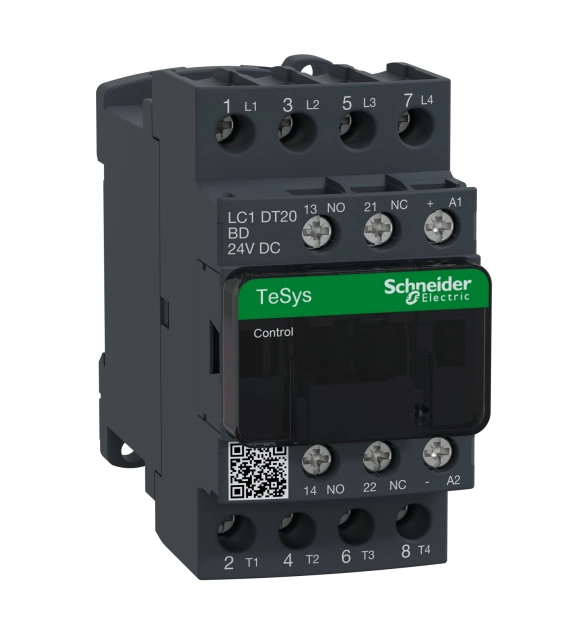

SCHNEIDER ELECTRIC Contactor - 4P(4NO), AC-1, <= 440V 20A, 24V DC standard coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Rated control supply voltage Us at AC 60HZ
    220
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally open contacts as main contact
    4

Easy TeSys Control contactor 3 poles for motor applications up to 500A 295kW/440V. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 233mm width for standard. It provides standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. Operating rates up to 2400 cycles per hour. It can cover -5°C to 55°C working temperature. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
