SCHNEIDER ELECTRIC Contactor - 4P(2NO+2NC), AC-1 <= 440V 125A, 110VAC 50/60 Hz coil | Spark & Co
  • 3D
|

СКУ: LC1D80008F7

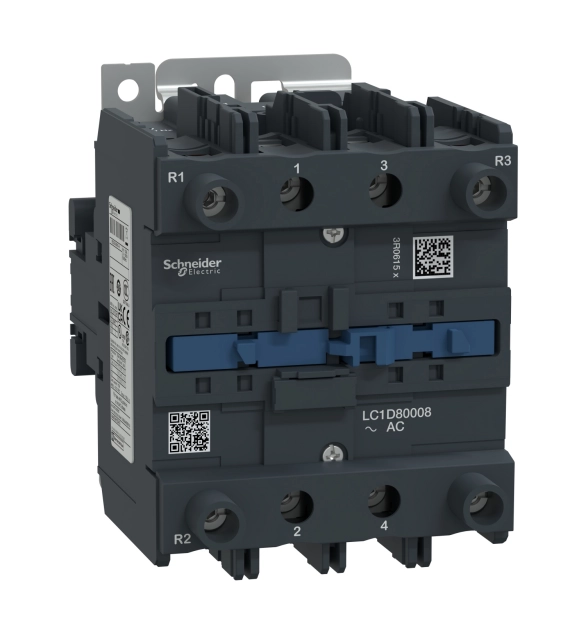

SCHNEIDER ELECTRIC Contactor - 4P(2NO+2NC), AC-1 <= 440V 125A, 110VAC 50/60 Hz coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    110
  • Rated control supply voltage Us at AC 60HZ
    110
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    125
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/690V AC-1. It provides a 110V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
