СКУ: ATV12H037M3

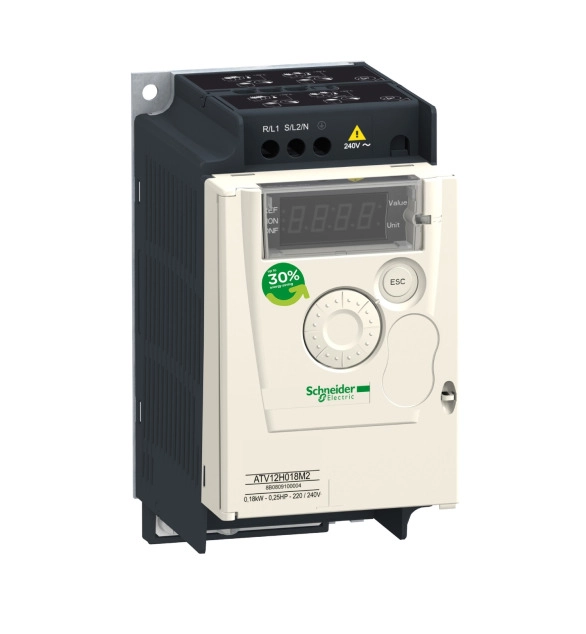

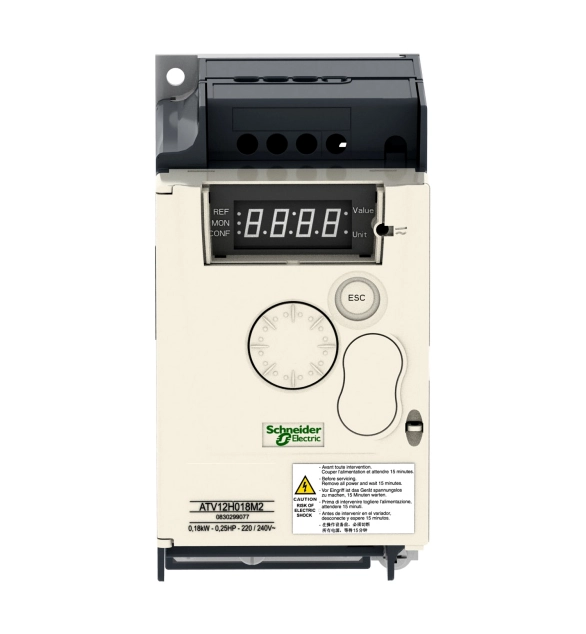

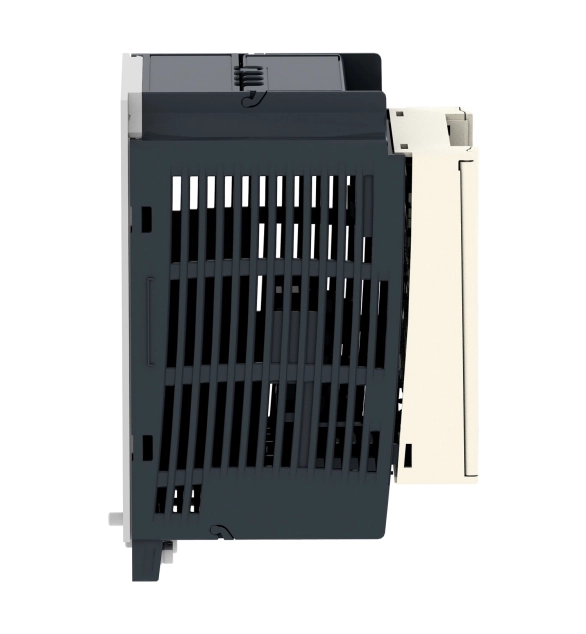

Честотен регулатор ATV12 - 0.37kW - 0.55hp - 200..240V - 3ph - with heat sink
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at DC
24
-
Rated control supply voltage Us at AC 50HZ
110
-
Rated control supply voltage Us at AC 60HZ
110
-
Degree of protection (NEMA)
EV000154
-
With display
TRUE
-
Release class
EV008931
-
Rated operating voltage Ue
208
-
Torque control
TRUE
-
Function
EV014006
-
Integrated motor overload protection
TRUE
-
Rated surrounding temperature without derating
40
-
Internal bypass
TRUE
-
Rated operation current Ie at 40 °C Tu
17
-
Rated power three-phase motor, inline, at 230 V
4
-
Rated power three-phase motor, inline, at 400 V
7.5
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
