SCHNEIDER ELECTRIC Contactor - 4P (2NO/2NC), AC-1, 440V, 20A, 24V DC coil,with intergral suppression | Spark & Co
  • 3D
|

СКУ: LP1K09008BD3

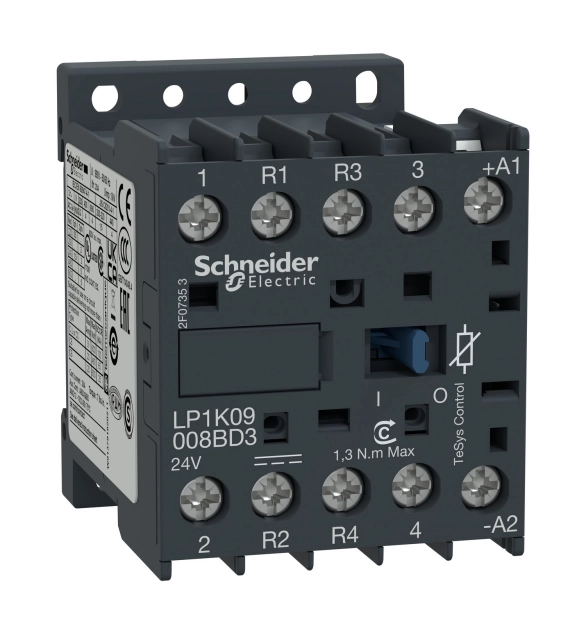

SCHNEIDER ELECTRIC Contactor - 4P (2NO/2NC), AC-1, 440V, 20A, 24V DC coil,with intergral suppression

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil with transient suppressor module, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
