СКУ: LC1D95ED

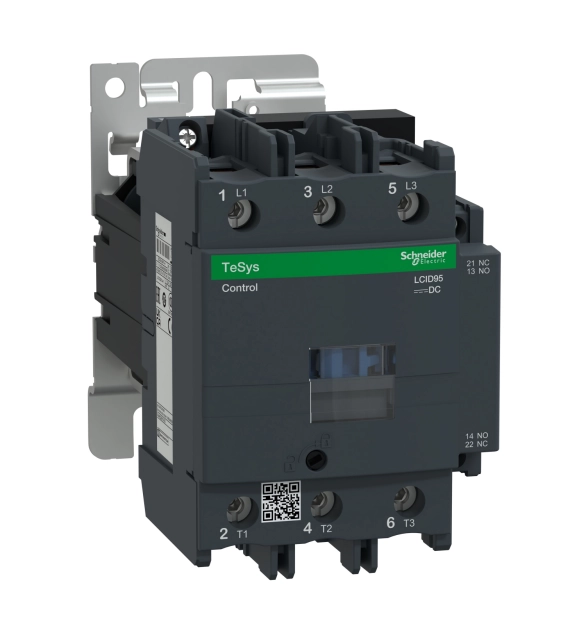

SCHNEIDER ELECTRIC Contactor 3P(3NO), AC-3/AC-3e, <=440V, 95A, 48V DC standard coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    24
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    TRUE
  • Rated operation power at AC-3, 400 V
    45
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation power NEMA
    44.8
  • Rated operation current Ie at AC-1, 400 V
    125
  • Rated operation current Ie at AC-3, 400 V
    95
  • Rated operation current Ie at AC-4, 400 V
    95
  • Rated operation power at AC-4, 400 V
    45

TeSys Deca contactor, 3 poles (3NO),for motor control applications 65A/690V,AC-3 37kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 110V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
